Welded Steel Pipe

Video Description

Product Description

We can produce and supply various of weld steel pipes, such as LSAW Steel Pipes, SSAW Steel Tubes, ERW Steel Pipe, .etc.
Welded steel pipe, also known as welded pipe, is a steel pipe made of steel plate or strip steel after crimping and welding, generally with a length of 6 meters.
Welded steel pipes are divided into straight seam welded pipes and spiral welded pipes according to the form of the weld seam. Classification by production method: process classification – arc welded pipe, electric resistance welded pipe, (high frequency, low frequency) gas welded pipe, furnace welded pipe.
Welded pipes with smaller diameters adopt straight seam welding, and welded pipes with large diameters mostly use spiral welding; according to the shape of the end of the steel pipe, it is divided into circular welded pipe and special-shaped (square, rectangular, etc.) welded pipe; according to different materials and uses, it is divided into mine fluid Conveying welded steel pipes, galvanized welded steel pipes for low-pressure fluid transportation, electric welded steel pipes for belt conveyor rollers, etc.
Commonly used materials for welded pipes are: Q235A, Q235C, Q235B, 16Mn, 20#, Q345, L245, L290, X42, X46, X60, X80, 0Cr13, 1Cr17, 00Cr19Ni11, 1Cr18Ni9, 0Cr18Ni11Nb, etc.

SEND INQUIRY OR    EMAIL ME

Standards and Classifications

Classfication	Standard	Main Products
Steel Pipe for Fluid Service	GB/T 14291	Welded pipe for mine fluid sevice
	GB/T 3091	Welded pipe for low pressure fluid service
	SY/T 5037	Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service
	ASTM A53	Black and hot-hipped galvanized welded and seamless steel pipe
	BS EN10217-2	Welded steel tybes for pressure purposes – delivery technical conditions – part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties
	BS EN10217-5	Welded steel tybes for pressure purposes – delivery technical conditions – part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
Steel Pipe for Ordinary Structure	GB/T 13793	Longitudinally electric resistance welded steel pipe
	SY/T 5040	Spirally submerged arc welded steel pipe piles
	ASTM A252	Welded and seamless steel pipe piles
	BS EN10219-1	Cold formed welded structural hollow sections of non-alloy and fine grain steels – part1: Technical delivert conditions
	BS EN10219-2	Cold formed welded structural hollow sections of non-alloy and fine grain steels – part2: tolerances dimmsions and sectional properties
Line Pipe	GB/T 9711.1	Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe)
	GB/T 9711.2	Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe)
	PSL1/2	Line pipe
Casing	API 5CT/ ISO 11960 PSL1	Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries

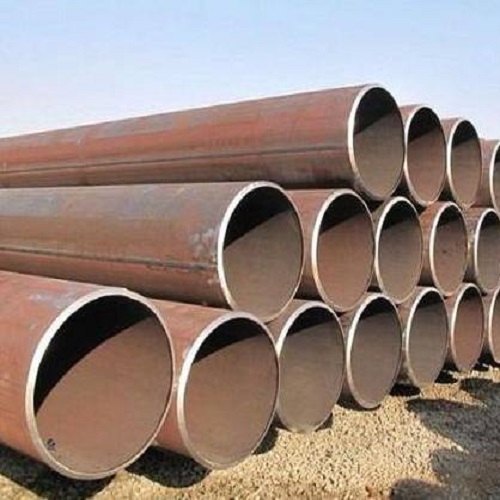

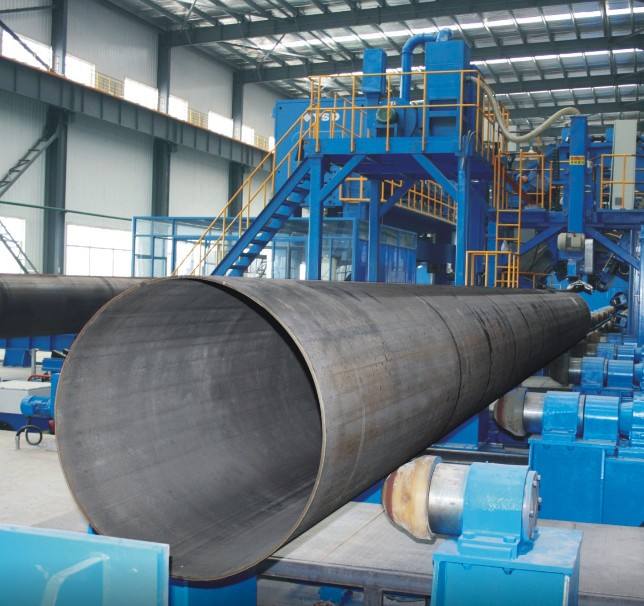

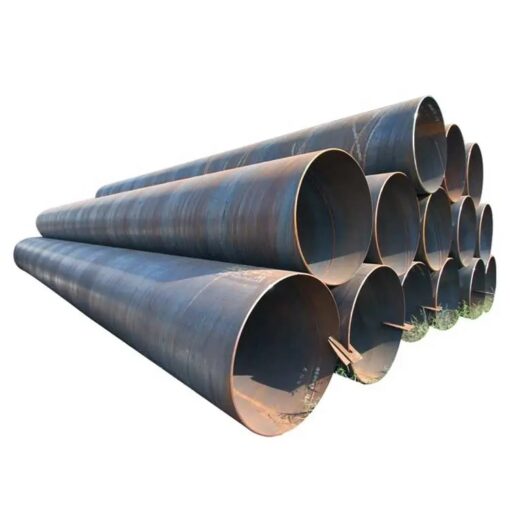

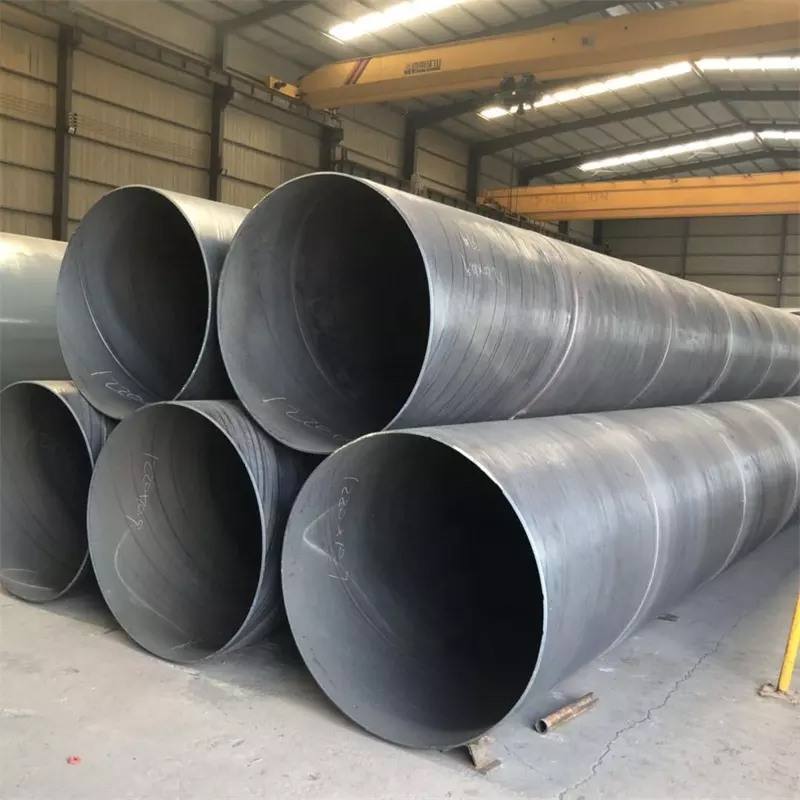

Product Display

We have a large stock of steel tubes, such as spiral welded steel tube and longitudinal welded steel pipes, etc. Welcome to visit our factory at any time.

SEND INQUIRY OR    EMAIL ME

Chemical Analysis and Mechanical Properties of LSAW Steel Pipes

SEND INQUIRY OR    EMAIL ME

Standard	Grade	Chemical Composition(max)%					Mechanical Properties(min)
		C	Si	Mn	P	S	Tensile Strength(Mpa)	Yield Strength(Mpa)
API 5CT	h40	–	–	–	–	0.030	417	417
	J55	–	–	–	–	0.030	517	517
	K55	–	–	–	–	0.300	655	655
API 5L PSL1	A	0.22	–	0.90	0.030	0.030	335	335
	B	0.26	–	1.20	0.030	0.030	415	415
	X42	0.26	–	1.30	0.030	0.030	415	415
	X46	0.26	–	1.40	0.030	0.030	435	435
	X52	0.26	–	1.40	0.030	0.030	460	460
	X56	0.26	–	1.40	0.030	0.030	490	490
	X60	0.26	–	1.40	0.030	0.030	520	520
	X65	0.26	–	1.45	0.030	0.030	535	535
	X70	0.26	–	1.65	0.030	0.030	570	570
API 5L PSL2	B	0.22	0.45	1.20	0.025	0.015	415	415
	X42	0.22	0.45	1.30	0.025	0.015	415	415
	X46	0.22	0.45	1.40	0.025	0.015	435	435
	X52	0.22	0.45	1.40	0.025	0.015	460	460
	X56	0.22	0.45	1.40	0.025	0.015	490	490
	X60	0.12	0.45	1.60	0.025	0.015	520	520
	X65	0.12	0.45	1.60	0.025	0.015	535	535
	X70	0.12	0.45	1.70	0.025	0.015	570	570
	X80	0.12	0.45	1.85	0.025	0.015	625	625
ASTM A53	A	0.25	0.10	0.95	0.050	0.045	330	330
	B	0.30	0.10	1.20	0.050	0.045	415	415
ASTM A252	1	–	–	–	0.050	–	345	345
	2	–	–	–	0.050	–	414	414
	3	–	–	–	0.050	–	455	455
EN10217-1	P195TR1	0.13	0.35	0.70	0.025	0.020	320	320
	P195TR2	0.13	0.35	0.70	0.025	0.020	320	320
	P235TR1	0.16	0.35	1.20	0.025	0.020	360	360
	P235TR2	0.16	0.35	1.20	0.025	0.020	360	360
	P265TR1	0.20	0.40	1.40	0.025	0.020	410	410
	P265TR2	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-2	P195GH	0.13	0.35	0.70	0.025	0.020	320	320
	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-5	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10219-1	S235JRH	0.17	–	1.40	0.040	0.040	360	360
	S275JOH	0.20	–	1.50	0.035	0.035	410	410
	S275J2H	0.20	–	1.50	0.030	0.030	410	410
	S355JOH	0.22	0.55	1.60	0.035	0.035	470	470
	S355J2H	0.22	0.55	1.60	0.030	0.030	470	470
	S355K2H	0.22	0.55	1.60	0.030	0.030	470	470

Exhibition Of Cooperation

SEND INQUIRY OR    EMAIL ME

Packing & Delivery

Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements

SEND INQUIRY OR    EMAIL ME

FAQ

Q: Can I get samples before order ?

A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.

Q: Can I go to your factory to visit?

A: Of course, we welcome customers from all over the world to visit our factory.

Q: What product information do I need to provide?

A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q: Does the product have quality inspection before loading?

A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.

Q: How do we trust your company?

A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
