Product Description
The spiral steel pipe is made of steel coils, extruded at room temperature, and welded by automatic double-wire double-sided submerged arc welding. The steel strip is fed into the welding pipe unit, and after multiple roller rolling, the steel strip is gradually rolled up to form a round tube with an open gap. The pressing amount of the extrusion roller is adjusted to control the weld gap to 1~3mm, and the two ends of the weld are flush.
Standards and Classifications
| Description | SSAW Steel Pipe |
| Standards | API 5L ERW PSL1/PSL2, EN39, BS1139, BS1387, EN10255,
ASTM A53, A500, A36, A795, ANSI C80, DIN2440, JIS G3444, GB/T3091, GB/T13793 |
| Certificate | API 5L ERW PSL1/PSL2, API 5CT, CE, ISO |
| Material | Q195, Q215, Q235, Q275, Q295, Q345, S275, S355, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8 |
| ASTM A53: Gr.A, Gr.B, Gr.C, Gr.D | |
| API 5L: Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70 | |
| GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555 | |
| ASTM A252: Gr.1 Gr.2 Gr.3 | |
| Type | Spiral, ERW (Electrical Resistance Weld), EFW (Electric Fusion Welding) |
| Outside Diameter | 6mm-2500mm
(1/8 inch, 1/4 inch, 1/2 inch, 3/4 inch, 1inch, 1 1/4 inch, 1 1/2 inch, 2inch, 2 1/2 inch, 3inch, 3 1/2 inch, 4inch, 5 inch, 6inch, 8 inch, 10 inch, 12inch, 14inch, 16 inch, 18 inch, 20 inch, 22 inch, 24 inch, 26inch, 28 inch, 30 inch, 32 inch, 34 inch, 36 inch, 38 inch, 40 inch, 42 inch, 44 inch, 46 inch, 48 inch) |
| Thickness | 1mm~220mm
(SCH5 ,SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS, SCH80,SCH100,SCH120,SCH140,SCH160, XXS) |
| Length | 6m-12m,or as required |
| Outside Coating | Anti-rust oil, black painting. |
| Epoxy Coating according to AWWA C-210 | |
| Bitumen Coating according to DIN30672, BS534 | |
| Coal- Tar Enamel Coating according to AWWA C-203 | |
| 3 Layer polyethylene Coating according to DIN30670 | |
| 3 Layer Polypropylene Coating according to DIN30678 | |
| Inside Coating | Epoxy lining according to AWWA C-210 |
| Bitumen Lining according to DIN30673, BS534 | |
| Coal-Tar Enamel Lining according to AWWA C-203 | |
| Cement Mortar Lining according to AWWA C-205, BS534 | |
| Testing and Inspection Reports | EN 10204 3.1, Mill TC EN 10204 3.1, Third Party Inspection Reports, Visual Inspection Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Chemical and Mechanical Reports, NABL Approved Lab |
| Price Term | EX-Work, FOB, CFR, CIF |
| Package | Wooden box, bundled for export standard or as required |
| Payment Term | T/T, L/C, |
| Delivery Time | 25-45 days (based on quantity) after receiving advanced payment |
| Application | a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear)
b) Fluid, gas and oil transport c) Pressure and heat transmission d) Construction and ornament e) Boiler heat exchangers |

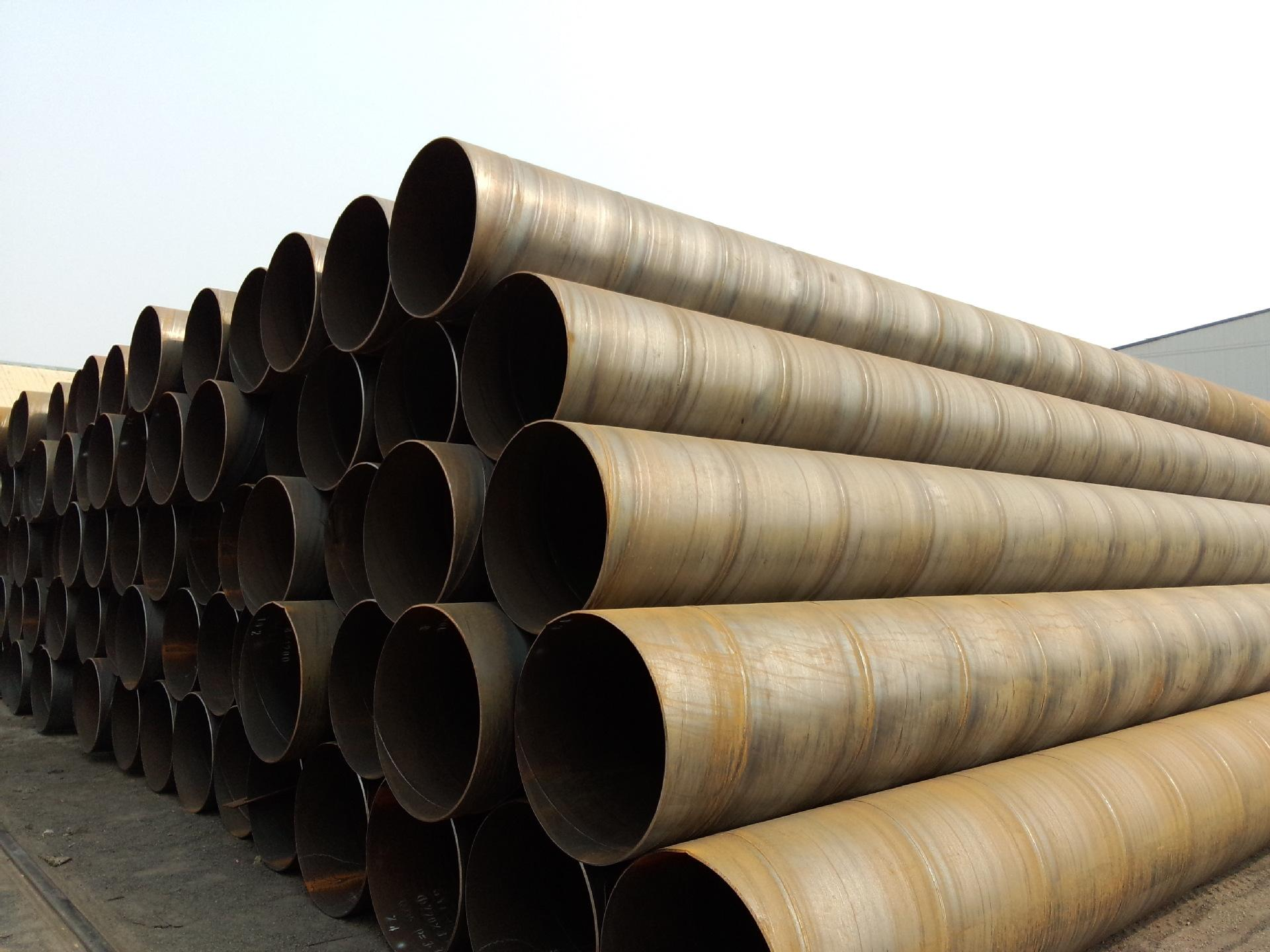

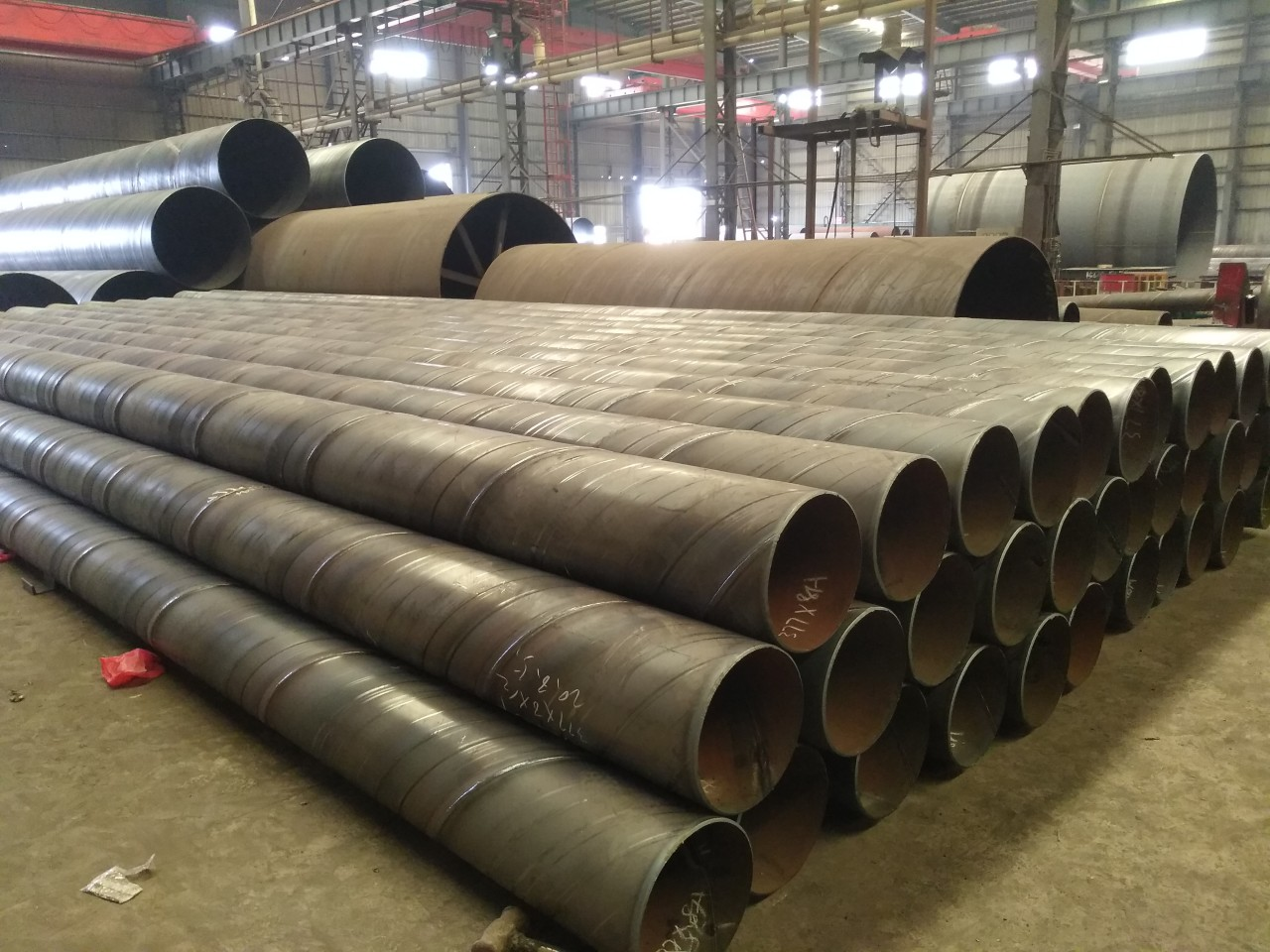

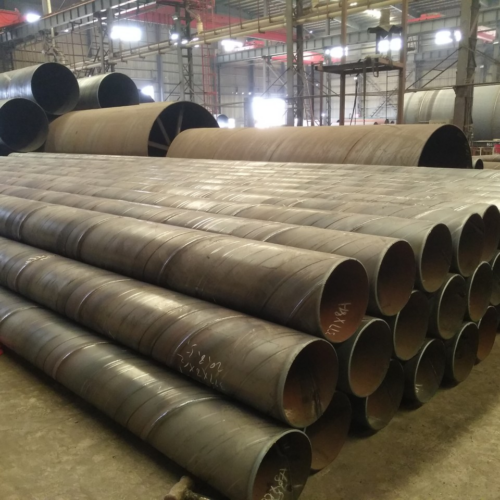

Product Display
Exhibition Of Cooperation
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
