Product Description
We can produce and supply products such as stainless steel sheets, stainless steel coils and stainless steel pipes in various specifications and materials, welcome to visit us and make inquiries at any time..
Stainless steel sheet is generally a general term for stainless steel plate and acid-resistant steel plate. Stainless steel sheets refer to steel plates that are resistant to corrosion by weak media such as air, steam, and water, while acid-resistant steel plates refer to steel plates that are resistant to corrosion by chemically aggressive media such as acids, alkalis, and salts.
There are many kinds of stainless steel plates.
According to the organizational structure, it is divided into four categories: austenitic stainless steel plate, martensitic stainless steel plate (including precipitation hardening stainless steel plate), ferritic stainless steel plate, and austenitic plus ferritic duplex stainless steel plate.
According to the main chemical composition or some characteristic elements in the steel plate, it can be divided into chromium stainless steel plate, chromium-nickel stainless steel plate, chromium-nickel-molybdenum stainless steel plate, low-carbon stainless steel plate, high-molybdenum stainless steel plate, high-purity stainless steel plate, etc.
According to the performance characteristics and uses of the steel plate, it is divided into nitric acid resistant stainless steel plate, sulfuric acid resistant stainless steel plate, pitting corrosion resistant stainless steel plate, stress corrosion resistant stainless steel plate, high strength stainless steel plate, etc.
According to the functional characteristics of the steel plate, it is divided into low-temperature stainless steel plate, non-magnetic stainless steel plate, free-cutting stainless steel plate, superplastic stainless steel plate, etc.
The commonly used classification method is to classify according to the structural characteristics of the steel plate, the chemical composition characteristics of the steel plate, and the combination of the two. It is generally divided into martensitic stainless steel plate, ferritic stainless steel plate, austenitic stainless steel plate, duplex stainless steel plate and precipitation hardening stainless steel plate, etc. or divided into two categories: chromium stainless steel plate and nickel stainless steel plate.
The stainless steel plate has a smooth surface, high plasticity, toughness and mechanical strength, and is resistant to corrosion by acids, alkaline gases, solutions and other media.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| All specifications products can be customized according to customer requirements | ||||
| Product Name | Hot Rolled / Cold Rolled Stainless steel plate / stainless steel sheet | |||
| Material | ①Mainly：201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321, 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc ②300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 ③200series:201,202,202cu,204 ④400series:409,409L,410,420,430,431,439,440,441,444 ⑤Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc ⑥Duplexstainless steel:S22053,S25073,S22253,S31803,S32205,S32304 ⑦Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo |
|||
| Thickness | 0.1~200 mm,or customized | |||
| Length | 100~12000 mm,or customized | |||
| Width | 1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc | |||
| Standard | ASTM A240,GB/T3280-2007,JIS4304-2005,ASTM A167,EN10088-2-2005,etc | |||
| Finish | 2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,Brush,etching,etc | |||
| Packing | Industry standard packaging or according to client’s requirement | |||
| Payment terms | 30%T/T in advance, the balance against the B/L copy | |||
| MOQ | 3 TONS,can be customized according to your requirements. | |||
| Delivery time | Fast delievery in 7 days,up to order quantity | |||
| Application | Stainless steel plate applies to construction field, ships building industry, petroleum,chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields.Stainless steel plate can be made according to the customers requirements. |
|||
|
GB/T20878
|
JIS
|
ASTM
|
KS
|
BSEN
|
AS
|
CNS
|
t/m3 |
|
12Cr13
|
SUS403
|
403
|
STS403
|
—
|
403
|
403
|
7.75
|
|
20Cr13
|
SUS420J1
|
420
|
STS420J1
|
1.4021
|
420
|
420J1
|
7.75
|
|
30Cr13
|
SUS420J2
|
—
|
STS420J2
|
1.4028
|
420J2
|
420J2
|
7.75
|
|
10Cr17
|
SUS430
|
430
|
STS430
|
1.4016
|
430
|
430
|
7.70
|
|
68Cr17
|
SUS440A
|
440A
|
STS440A
|
—
|
440A
|
440A
|
7.70
|
|
06Cr19Ni10
|
SUS304
|
304
|
STS304
|
1.4301
|
304
|
304
|
7.93
|
|
022Cr19Ni10
|
SUS304L
|
304L
|
STS304L
|
1.4306
|
304L
|
304L
|
7.93
|
|
06Cr17Ni12Mo2
|
SUS316
|
316
|
STS316
|
1.4401
|
316
|
316
|
7.98
|
|
022Cr17Ni12Mo2
|
SUS316L
|
316L
|
STS316L
|
1.4404
|
316L
|
316L
|
7.98
|
|
06Cr18Ni11Ti
|
SUS321
|
321
|
STS321
|
1.4541
|
321
|
321
|
7.93
|
|
06Cr18Ni11Nb
|
SUS347
|
347
|
STS347
|
1.455
|
347
|
347
|
7.98
|

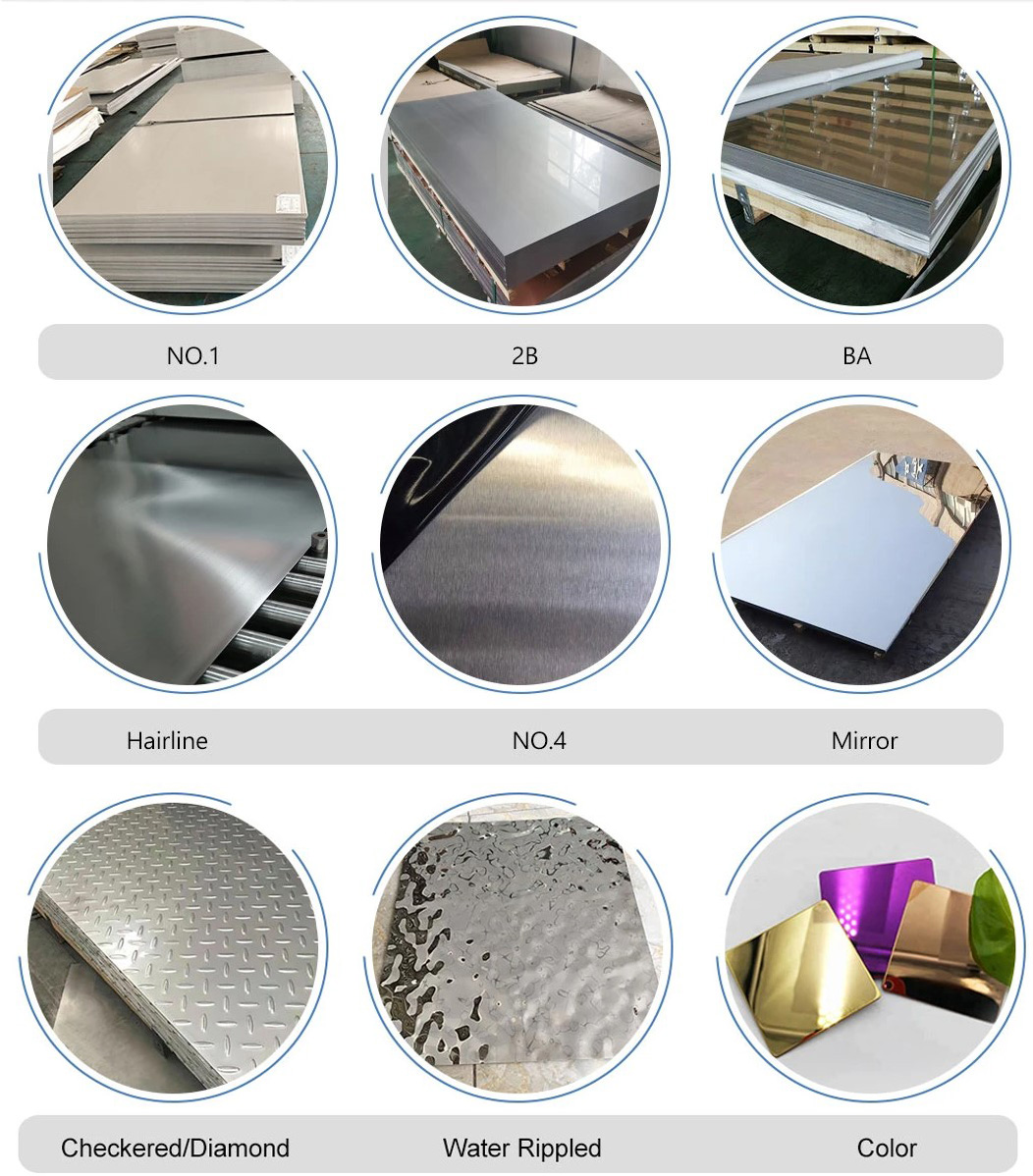

| Surface Finish | Characteristics and application |
| 2B | The surface brightness and flatness of no2B is better than no2D. then through a special surface treatment to improve its mechanical properties,No2B could nearly satisfy comprehensive uses. |
| No.1 | Polished with abrasive belt of grit#100-#200, have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils etc. |
| No.4 | Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
| HL | Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators, door of building, frontal plate etc. |
| BA | Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus, ornament etc. |
| 8K | The product have excellent brightness and prefer reflexivity can to be the mirror. |

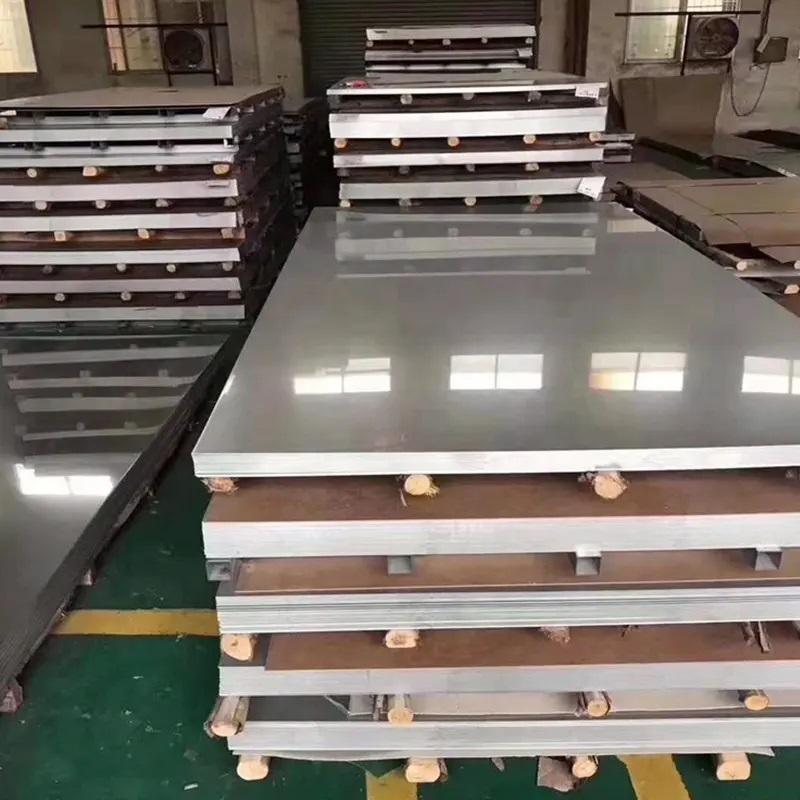

Product Display
We have a large stock of stainless steel sheets, such as 304 steel sheet, 316L steel sheets, 201 steel sheet, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of stainless steel sheets and ss plates to meet your various needs.
SEND INQUIRY OR EMAIL ME
| CHEMICAL COMPONENT | ||||||||
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | – |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.-6.0 | 17.0-19.0 | – |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | – |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | – |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | – |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | – | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 0.19-0.22 | 0.24-0.26 | – |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | – | 11.5-13.5 | – |
| 430 | 0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | – |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME

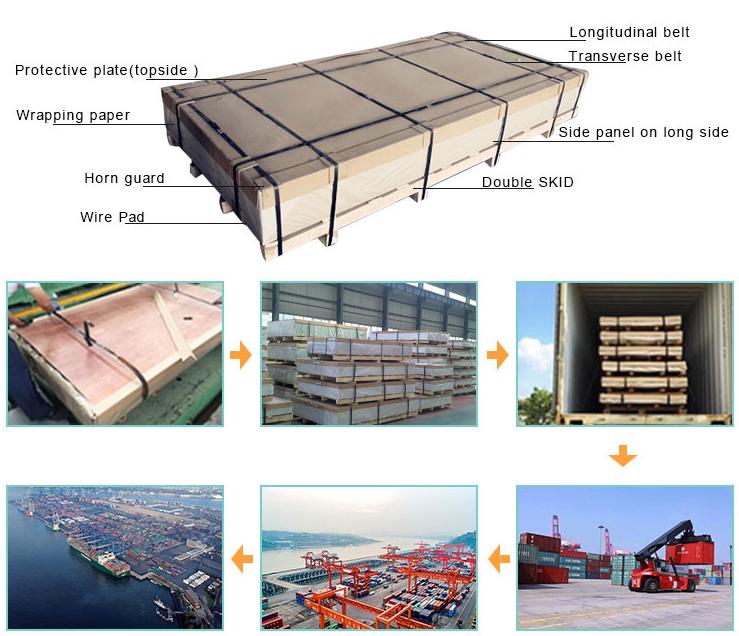

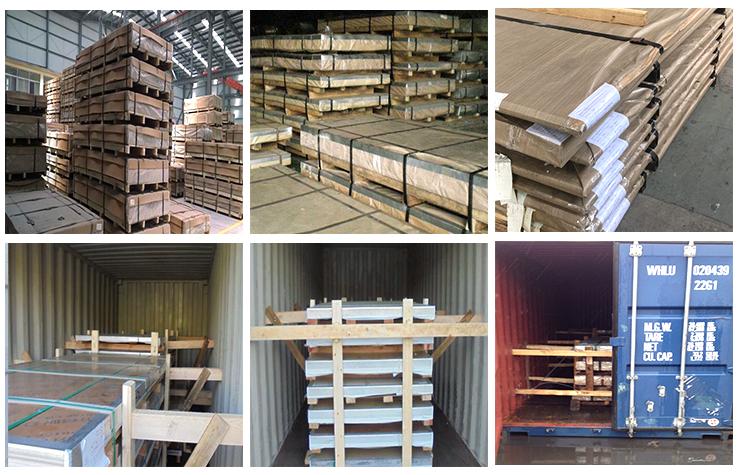

Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
