Product Description
We can produce and supply various specifications spring steel coil, spring steel strip, carbon steel coils, etc.
Spring steel belt is a kind of spring steel, and spring steel refers to special alloy steel for manufacturing various springs and other elastic components. According to performance requirements and service conditions, it can be divided into ordinary spring alloy steel coil and special alloy spring steel.
1. Classification according to chemical composition
According to the GB/T 13304 standard, spring steel is divided into non-alloy spring steel (carbon spring steel) and alloy spring steel according to its chemical composition.
carbon spring steel
The carbon content (mass fraction) of carbon spring steel is generally 0.62%~0.90%. According to its manganese content, it is divided into general manganese content (mass fraction) (0.50%~0.80%) such as 65, 70, 85 and higher manganese content (mass fraction) (0.90~1.20%), such as 65Mn.
Alloy spring steel
Alloy spring steel is based on carbon steel, by properly adding one or several alloying elements to improve the mechanical properties, hardenability and other properties of steel, so as to meet the steel required for the manufacture of various springs.
The basic composition series of alloy spring steel are silicon-manganese spring steel, silicon-chromium spring steel, chromium-manganese spring steel, chrome-vanadium spring steel, tungsten-chrome-vanadium spring steel, etc. On the basis of these series, some grades have added alloying elements such as molybdenum, vanadium or boron in order to improve their performance in some aspects.
In addition, some grades are selected from other steels, such as high-quality carbon structural steel, carbon tool steel, high-speed tool steel, and stainless steel, as spring steel.
Second, according to the classification of production and processing methods
1. Hot-rolled (forged) steel products include hot-rolled round steel, square steel, flat steel, steel plate, forged round steel and square steel.
2. Cold-drawn (rolled) steel products include steel wire, steel strip, and cold-drawn material (cold-drawn round steel).
SEND INQUIRY OR EMAIL ME
Standards and Classifications
|
Product Name
|
Spring steel strip /Spring Steel Strap/Spring Steel Band
|
|
Material
|
GB Spring Steel :65、70、65Mn、70Mn、55Si2Mn、55SI2MnB、55SI2MnVB、60Si2Mn、60Si2MnA、60SI2CrA、60Si2CrVA、55CrVA、60CrMnBA、55CrMnA,etc; China Tainwan Spring Steel :SK3、SK5、SK7、SKS51、S55C、S65C、SK85、SK4、SK85、T8A、T12A、T10A,etc;
Germany Spring Steel :C67E、CK67、C75E、CK75、C85E、CK85、C101E、CK101、38Si6、38Si7、46Si7、51Si7、55Si7、56Si7、65Si7、71Si7、60SiMn、51MnV7、54SiCr6、60SiCr7、67SiCr7、55Cr3、51CrV4、50CrV4、58CrV4、51CrMO4、45CrMOV6-7、52MnCrB3,etc;
JIS Spring Steel:SUP3、SUP6、SUP7、SUP9、SUP9A、SUP10、SUP11A、SUKP12、SUP13、S50C-CSP、S55C-CSP、S60C-CSP、S65C-CSP、S70C-CSP、SK5-CSP、SUP10-CSP,etc;
UK Spring Steel:251A58、251A60、251H60、525A58、525A60、525A61、685A57、685H57、704A60、704H60、705A60、705H60、735A51、735H51、735,etc;
ASTM Spring Steel : sae1050,sae1055,sae1060,sae1065,sae1070,sae1075,etc;
|
|
Thickness
|
0.08mm-4.0mm
|
|
Width
|
10mm-800mm or cutting according customer’s requests;
|
|
Standard
|
BS,ASTM,JIS,GB,DIN,AISI Standard,etc
|
|
Surface
|
Yellow,grey, blue, bright, bright & grey, bright & blue,polished,black ,etc
|
|
Edge
|
slit, sheared, square, rounded,etc;
|
|
Process
|
Hardened (quenched) and tempered,annealed,etc;
|
|
Hardness
|
Soft strip: HV190
Hardened and tempered process (29-55HRC) and annealED process (max 19HRC). Or as customer’s requirement
|
|
Package
|
PVC film+ waterproof kraft paper + strong wooden case /Pallets or according customer’s request;
|
|
Features
|
The chemical compositions helps spring steel to endure significant bending or twisting and return to its original shape without deforming.
|
|
Application
|
Spring Steel is widely in the motor vehicle industry and many general engineering applications. It is suitable for applications that require high strength and toughness. Typical applications include crankshafts, steering knuckles, gears, spindles and pumps,etc;
|
|
Delivery Term
|
EXW, FOB, CFR, CIF, DDU.
|
|
Note
|
OEM / ODM / Buyer Label accepted
|

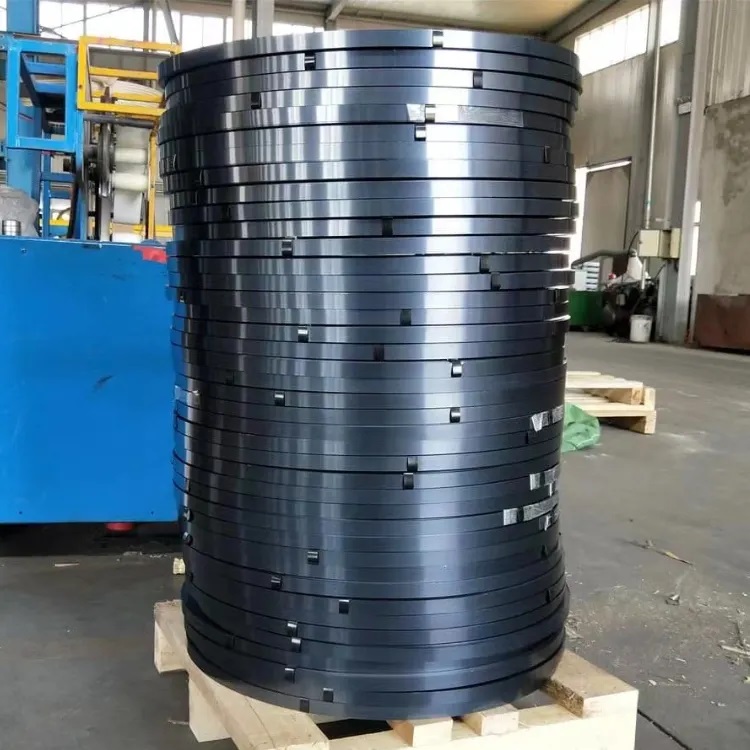

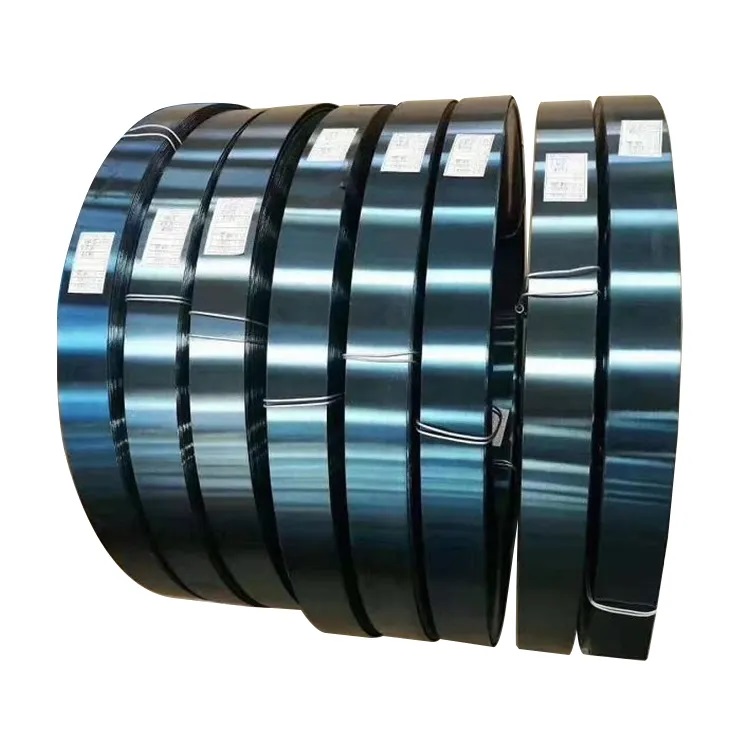

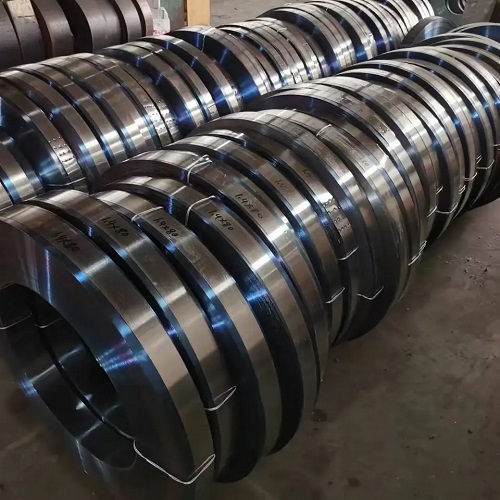

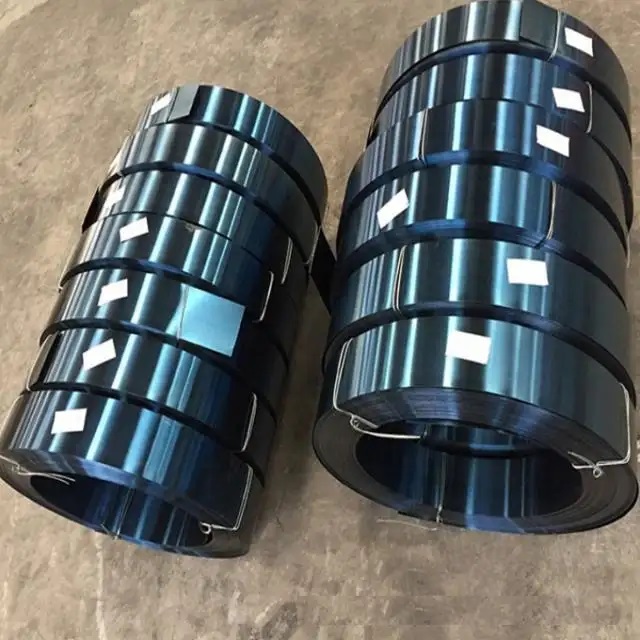

Product Display
We have a large stock of steel coils, such as high carbon steel coils, spring steel strip, hot rolled steel coils, cold rolled steel sheet in coil, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of high carbon alloy steel coils to meet your various needs.
SEND INQUIRY OR EMAIL ME
| GRADES COMPARISON FOR SPRING STEEL | ||||||||
| CHINA GB/T | USA ASTM | JAPAN JIS | GERMANY DIN | FRANCE NF | BIRTAIN BS | ISO | KOREA KS | TAIWAN CNS |
| 65 | 1065 | SUP2 S65-CSP | 60E | XC65 | 060A67 | C60E4 | ||
| 70 | 1070 | S70C-CSP | 60E | XC70 | 070A72 | 8458-3 DAB | ||
| 85 | 1084 | SUP2 SK5-CSP | C85E | XC85 | 060A86 | 8458-2 DH | SUP1 | SUP3 |
| 65Mn | 1566 | S60C-CSP | CK67 | 080A67 | C60E4 | |||
| 55Si2Mn | 9255 | SUP 6 SUP7 | 55Si7 | 55Si7 | 251H60 | 55SiCr7 | ||
| 55SiMnVB | ||||||||
| 60Si2Mn | 9260 | SUP 6 SUP7 | 65Si7 | 65Si7 | 251H60 | 61SiCr7 | SUP3 | SUP6 |
| 60Si2MnA | 9260 | SUP 6 SUP7 | 65SiMn5 | 55Cr7 | 251H6 | 61SiCr7 | SUP3 | SUP6 |
| 60Si2CrA | 65SiCr7 | 65SiCr7 | 685H57 | 55SiCr6-3 | ||||
| 60Si2CrVA | 65SiCr7 | 55SiCr6-3 | ||||||
| 55SiCrA | ||||||||
| 55CrMnA | 5155 | SUP9 | 55Cr3 | 55Cr3 | 527A60 | 55Cr3 | SPS5 | SUP9 |
| 60CrMnA | 5160 | SUP9A | 55Cr3 | 55Cr3 | 527A60 | SPS5A | SUP9A | |
| 60CrMnMoA | 4161 | SUP13 | SPS9 | SUP13 | ||||
| 50CrVA | 6150 | SUP10 | 51CrV4 | 51CrV4 | 735A51 | 51CrV4 | SPS6 | SUP10 |
| 60CrMnBA | 51B60H | SUP11A | 52MnCr83 | 60VrB3 | SPS67 | SUP11 | ||
| 30w4Cr2VA | ||||||||
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME

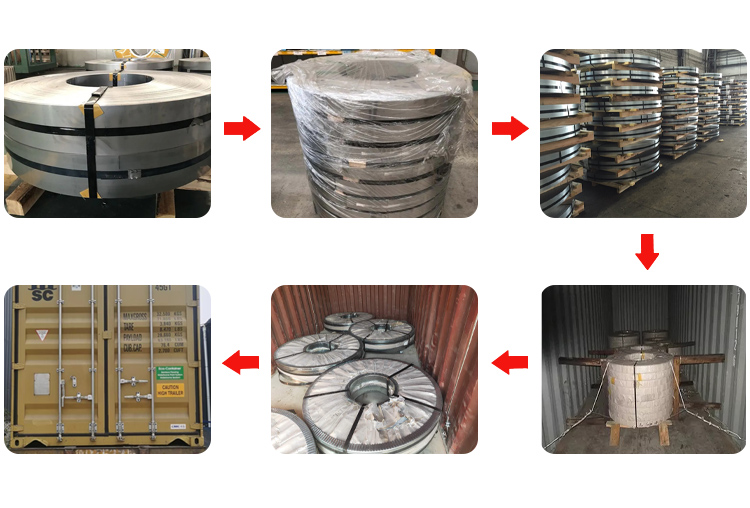

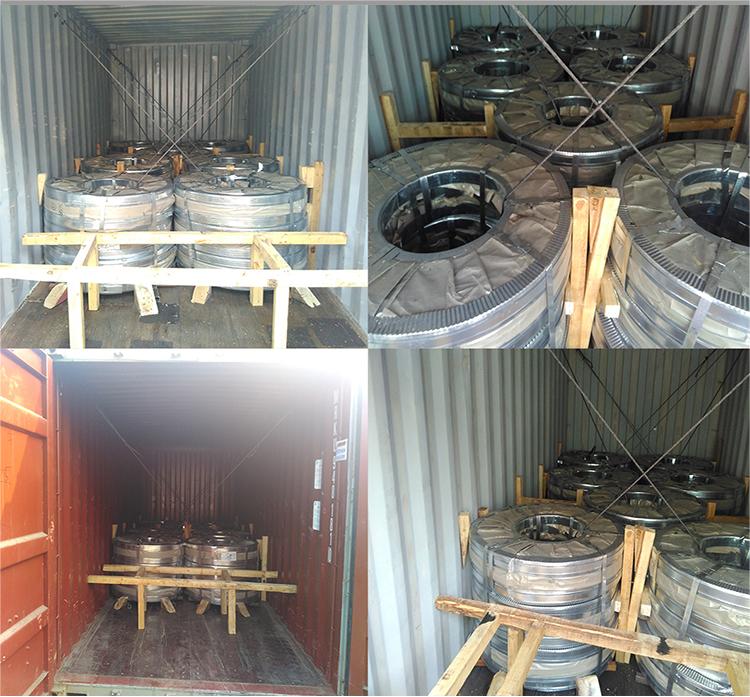

Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
