Video Description
Product Description
We manufacture and supply precision tubes, precision steel tubes, precision seamless tubes, precision seamless steel tubes and other precision tube products.

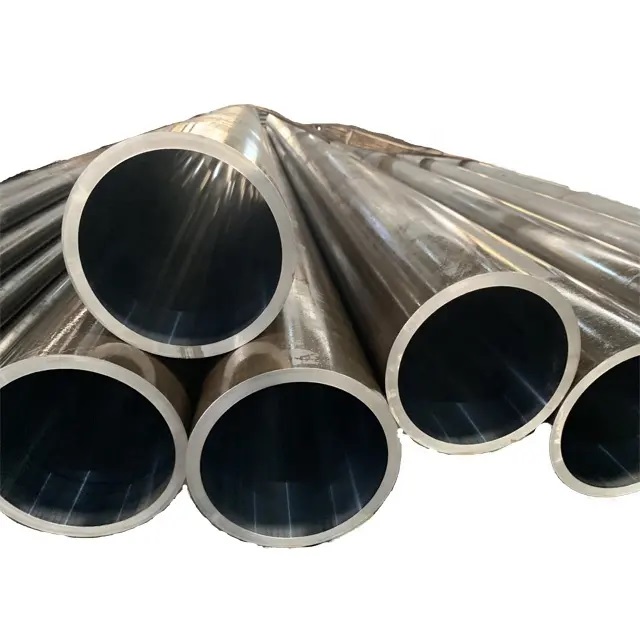

Precision steel pipe is a high-precision, high-brightness seamless steel pipe produced by cold drawing or cold rolling. Its inner and outer diameters can be accurate to within 0.2mm. While ensuring bending and torsional strength, it is light in weight, so it is widely used in the manufacture of precision mechanical parts and engineering structures. It is also commonly used to produce various conventional weapons, barrels, shells, bearings, etc.
Commonly used materials are ST52, Q345B, CK20, CK45, SAE1026 10#、20#、35#、45#、20cr、40Cr、20CrMo﹑16mn﹑27simn﹑304﹑201﹑310s, high-quality carbon structural steel.
Characteristics of precision steel pipes
1. Smaller outer diameter.
2. High precision can be used for small batch production.
3. The cold drawn finished product has high precision and good surface quality.
4. The cross-sectional area of the steel pipe is more complex.
5. The performance of the steel pipe is superior, and the metal is relatively dense.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Material | 10#, 20#, 45#, A53(A,B), A106(B,C), A179-C, ANSI4130 , 15Mo3, Q345, Q195, ST52, ST45, St37-2, ST35.4, ST35.8, ST54, 15crmo, 12Cr1MoV, API L80, 4130, 4140, 4135 |
| Surface | Black/bright |
| Standard | ASTM A106-2006, ASTM A53-2007, ANSI A210-1996, ASTM A179-1990, BS 1139, BS 6323, DIN 1626, DIN 1629/4, DIN 2391, DIN 17175, DIN2448 ,GB/T8162, Gb/t8163, JIS G3459-2004, JIS G3456-2004, JIS G3101 |
| Size | OD 3mm-140mm Thickness 0.5-20mm |
| Processing | Cold rolled /cold drawn 1. BK (+C) No heat treatment after last cold forming process. 2. BKW (+LC) After last heat treatment there is a light pass (colddrawing) 3. BKS (+SR) After the final cold forming process the tubes are stress relieve annealed. 4. GBK (+A) After the final cold forming process the tubes are annealed in a controlled atmosphere. 5. NBK (+N) After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere. |
| Packing | Woven bag / wooden or crate carton/ Bundle Packing/ Plain end or vanished as per customer’s request. |
| Delivery time | Normally 15-25 working days |
Product Display

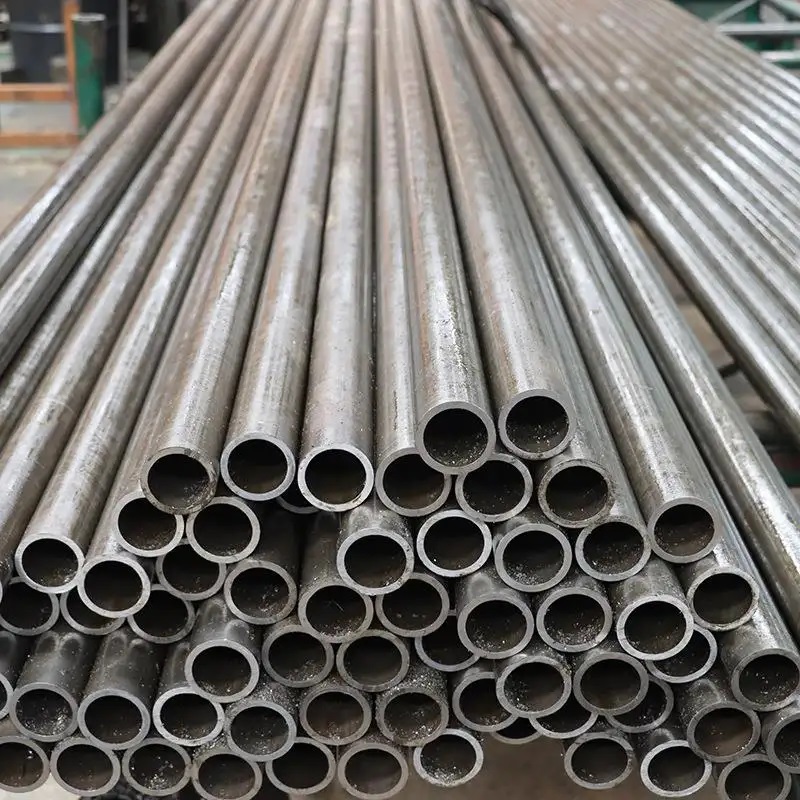

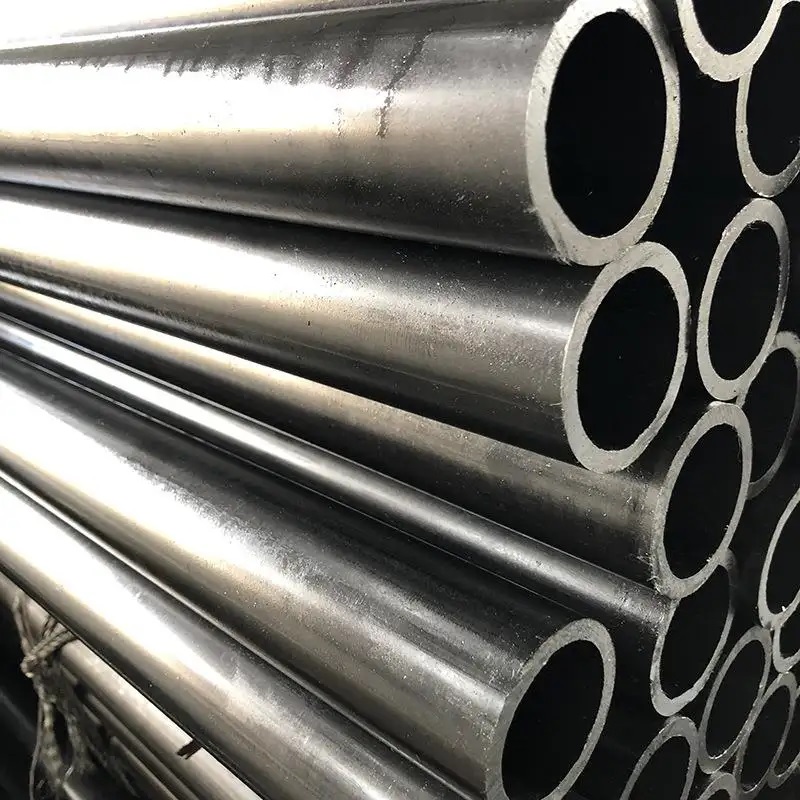

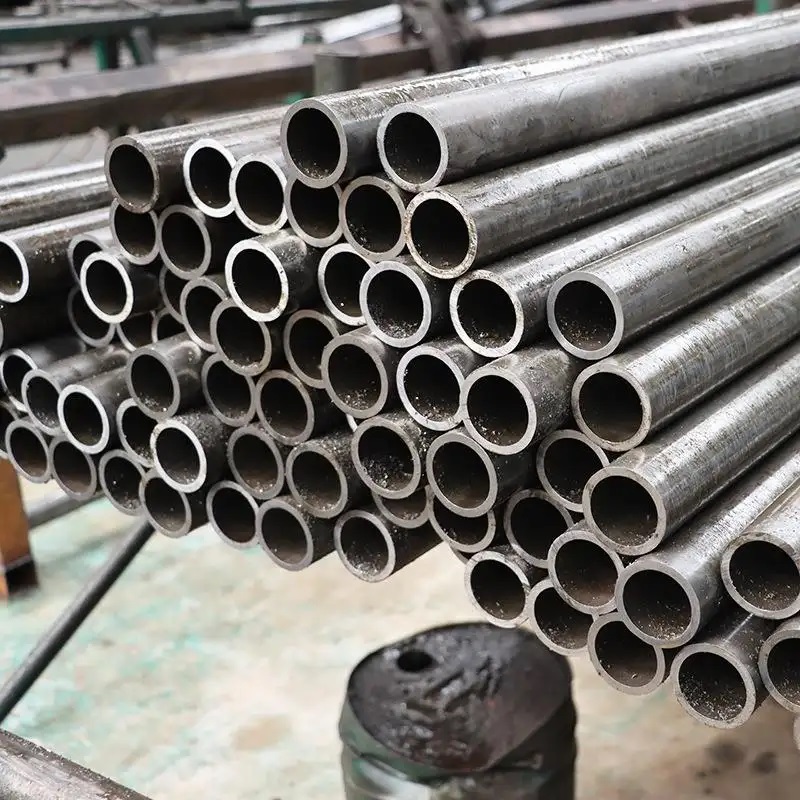

We have a large stock of steel tubes, such as spiral welded steel tube and longitudinal welded steel pipes, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of carbon steel tubes/pipes to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Material | API SPEC 5L | A25, A25A, B, X42, X46, X52, X56, X60, X65, X70, X80, X90, X100 | |
| ASTM A53/ASME SA53 | Grade A, Grade B, | ||
| ASTM A106/ASME SA106 | Grade A, Grade B, Grade C | ||
| ASTM A210/ASME SA210 | Grade A-1, Grade C | ||
| ASTM A500/ASME SA500 | Grade A, Grade B, Grade C, Grade D | ||
| ASTM A501/ASME SA501 | Grade A, Grade B | ||
| ASTM A556/ASME SA556 | Grade A2, B2, C2 | ||
| BS 3059 | 320, 360, 440, 620-460, 629-590, 762 | ||
| EN 10216-1&2 | P195, P235, P265 | ||
| EN10297-2 | E235, E275, E315, E355a, E470, C22E, C35E, C45E | ||
| EN10210-1 | S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355K2H | ||
| DIN 1629 | st37.0, st44.0, st52.0 | ||
| DIN 1630 | st37.4, st44.4, st52.4 | ||
| DIN 2391 | st35, st45, st52 | ||
| DIN 17175 | st35.8, st45.8 | ||
| JIS G3429 | STH11, STH 12 | ||
| JIS G3444 | STK290, STK400, STK500, STK490, STK540 | ||
| JIS G3454 | STPG370, STPG410 | ||
| JIS G3455 | STS370, STS410, STS480 | ||
| JIS G3456 | STPT370, STPT410, STPT480 | ||
| JIS G3460 | STPL380 | ||
| JIS G3461 | STB340, STB410, STB510 | ||
| JIS G3464 | STBL380 | ||
| JIS G3475 | STKN400W, STKN400B, STKN490B | ||
| Size | O.D:6-2500mm W.T:0.9-120mm Length: 5.8m, 6m, 11.8m, 12m, or as required. | ||
| Technique | 1) Hot Rolled | Package | 1) Export standard package |
| 2) Cold Drawn | 2) bundled wooden box | ||
| 3) Cold Rolled | 3) suit for all kinds of transport, or be require | ||
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
