Product Description
We can produce and supply various specifications corrugated steel sheet, roofing plate, etc.

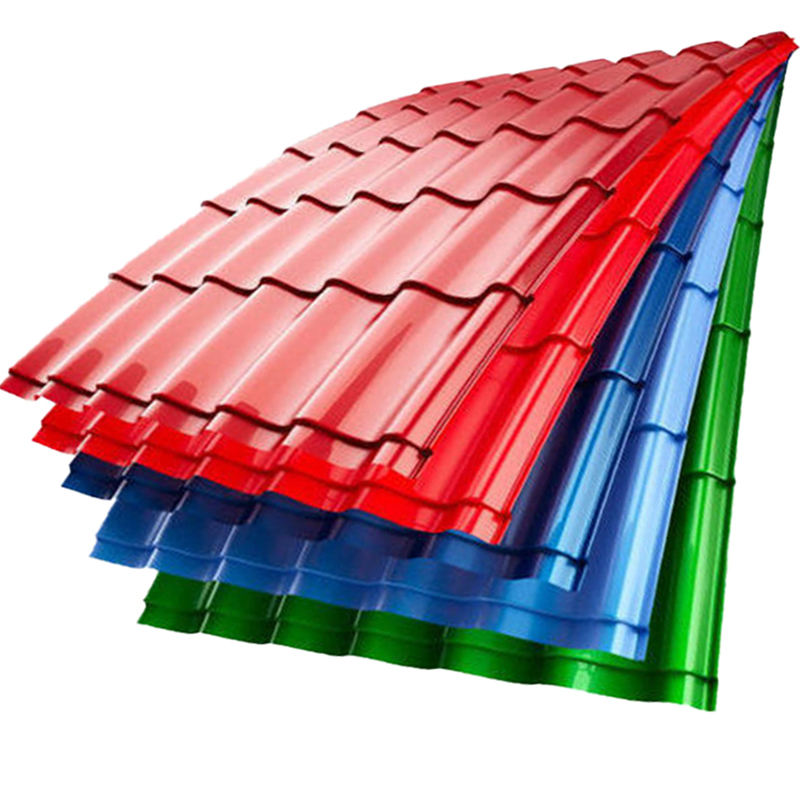

Corrugated steel plate, also known as roofing sheet, roofing panel, refers to a steel plate with a wavy surface made by stamping a thin steel plate. Usually, metal sheets such as color-coated steel sheets and galvanized sheets are rolled and cold-bent into various wave-shaped profiles. It is suitable for roofs and walls of industrial and civil buildings, warehouses, special buildings, and large-span steel structure houses. Surface and interior and exterior wall decoration, etc. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life, maintenance-free, etc., and has been widely promoted and applied.
In addition, the commonly used materials for roof panels are 0.426, 0.478, and 0.55mm base material thickness of medium and high strength galvanized or galvanized color steel coils, aluminum alloys, aluminum-magnesium-manganese alloys, stainless steel, zinc-copper-titanium plates (titanium zinc), metal plate, copper, pure titanium plate, etc.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| ommodity | Corrugated Roofing Steel Sheet Color Coated Corrugated Board Roofing Panel | |||
| Product | Galvanized Steel | Galvalume Steel | Prepainted Steel | Prepainted Steel |
| (PPGI) | (PPGL) | |||
| Thickness(mm) | 0.13-1.5 | 0.13-0.8 | 0.13-0.8 | 0.13-0.8 |
| Width(mm) | 750-1250 | 750-1250 | 750-1250 | 750-1250 |
| Surface Treatment | Zinc | Aluzinc coated | Ral color coated | Ral color coated |
| Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 | |||
| Material | SGCC, SGHC, DX51D, SGLCC, SGLHC, CGCC, CGLCC | |||
| Width(mm) | 610-1250mm (after corrugated) Raw material width 762mm to 665mm(after corrugated) Raw material width 914mm to800mm(after corrugated) Raw material width 1000mm to 900mm(after corrugated) Raw material width 1200mm to 1000mm(after corrugated) |
|||
| Shape | According to different application requirements,the profiled steel sheet can be pressed into a wave type,a Ttype,a V type,a rib type and the like. | |||
| Color coating（Um) | Top:5-25um Back:5-20 um or as client’s requirement | |||
| Paint Color | RAL code No. or customer’s requirement | |||
| Surface treatment | Chromed passivation,anti-finger print,skinpassed.Ral color .every piece surface can be painted logo as customer’s requirement | |||
| Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD,S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or As Requirement |
|||
| Pallet weight | 2-5MT customer’s requirement | |||
| Quality | Softy,half hard and hard quality | |||
| Packaging | Export standard ,seaworthy | |||

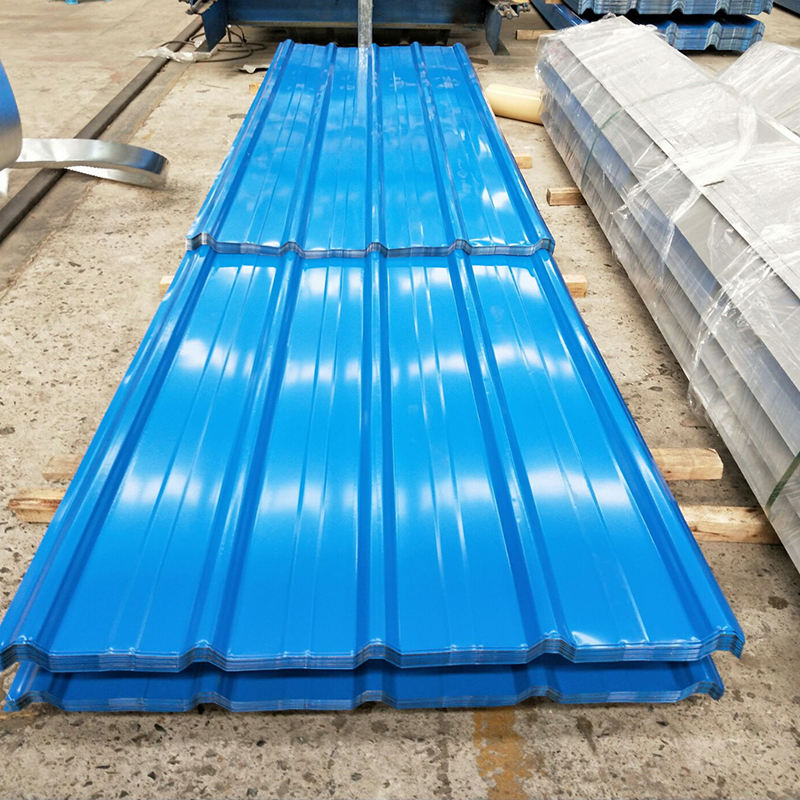

Product Display
We have a large stock of corrugated steel sheets, roofing plates, foofing panel, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of HDGI Sheets to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Usage | Grade | Yield Strength (MPA) | Tensile Strength (MPA) | Elongation rate % |
| Punching galvanized steel | DX51D+Z | ~ | 270-500 | >=20 |
| DX52D+Z | 140-300 | 270-420 | >=22 | |
| DX53D+Z | 140-260 | 270-380 | >=26 | |
| DX54D+Z | 140-220 | 270-350 | >=30 | |
| Structure galvanized steel | S220GD+Z | >=220 | >=300 | >=18 |
| S250GD+Z | >=250 | >=330 | >=17 | |
| S280GD+Z | >=280 | >=360 | >=16 | |
| S320GD+Z | >=320 | >=390 | >=15 | |
| S350GD+Z | >=350 | >=420 | >=14 | |
| S400GD+Z | >=400 | >=470 | ~ | |
| S500GD+Z | >=500 | >=530 | ~ | |
| S550GD+Z | >=550 | >=560 | ~ |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME

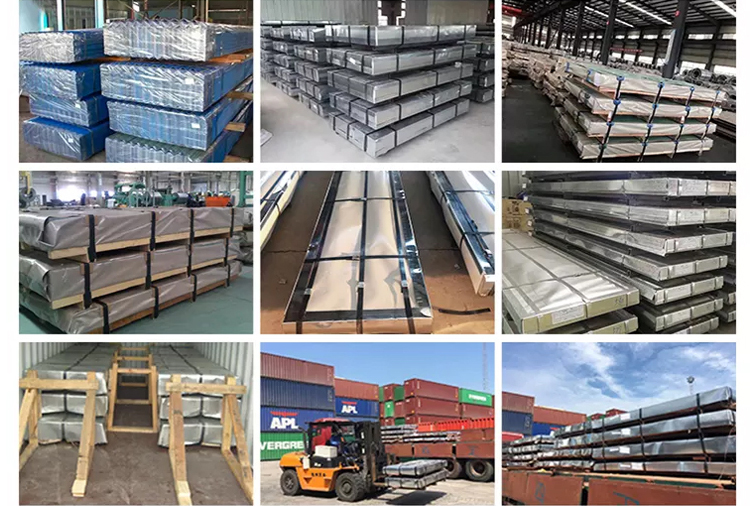

Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
