We can produce and supply various specifications profile steel, I beam steel, H-beams steel, angle steel bar, channel steel, etc.

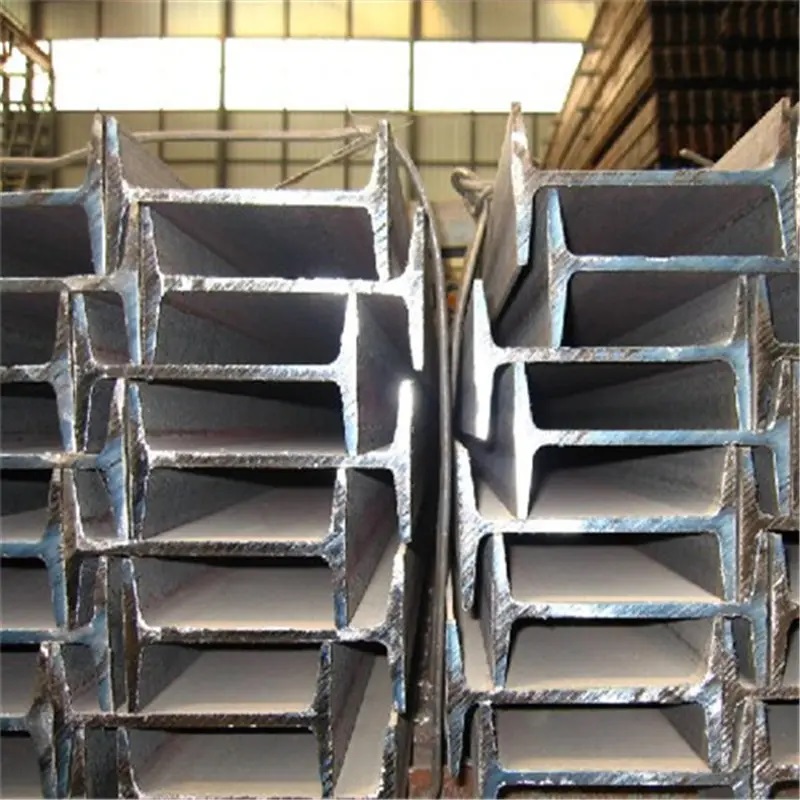

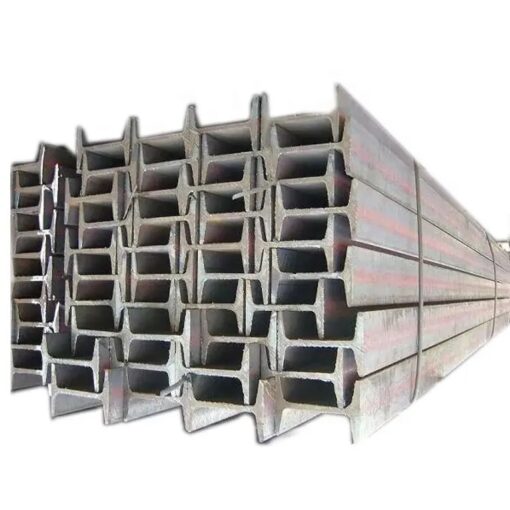

I-beam, also known as steel beam (Universal Beam), is a long strip of steel with an I-shaped cross section. I-beams are divided into ordinary I-beams and light I-beams.
I-beams are mainly divided into ordinary I-beams, light I-beams and wide-flange I-beams. According to the height ratio of the flange to the web, it is divided into wide, medium and narrow wide flange I-beams.
Product implementation standards: GB, BSEN, ASTMA6/A6M-12, DIN EN, JIS, ISO, KS.
British standard H steel: UB, UC
European standard H beam steel: IPE
American standard H steel beam: ASTM/ASME A36, A992
Material grades include:
S235, S275, S355 grade JR/J0/J2/NL/ML/K2
ASTM A36, A572 Gr.50, A992
JIS SS400, SM490A, SM490B, SM490YA, SN490B
Q345D, Q345E, Q420D, Q460D, Q460E, Q550D, Q690D, Q690E, Q960D, Q960E
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| I Steel Beam / I Beams Steel | ||||
|
Material Grade
|
Q195,Q215,Q235B,Q345B, S235JR/S235/S355JR/S355, SS440/SM400A/SM400B SS400-SS540 Series, ST Series,A36, A572 G50 G60, A992 Series,Gr50 Series
|
|||
|
Size
|
Length:6-12m
|
|||
|
1.Web Width (H): 100-900mm 2.Flange Width (B): 100-300mm
3. Web Thickness (t1): 5-30mm
4. Flange Thickness (t2): 5-30mm
|
||||
|
Application
|
Building structure and engineering structure, such as the beam, Bridges, transmission tower, lifting transportation machinery,ship, industrial furnace, reaction tower, container frame and warehouse
|
|||
|
Technique
|
Hot Rolled
|
|||
|
Packing
|
Export standard packing or according to customers’ requirement
|
|||
Product Display

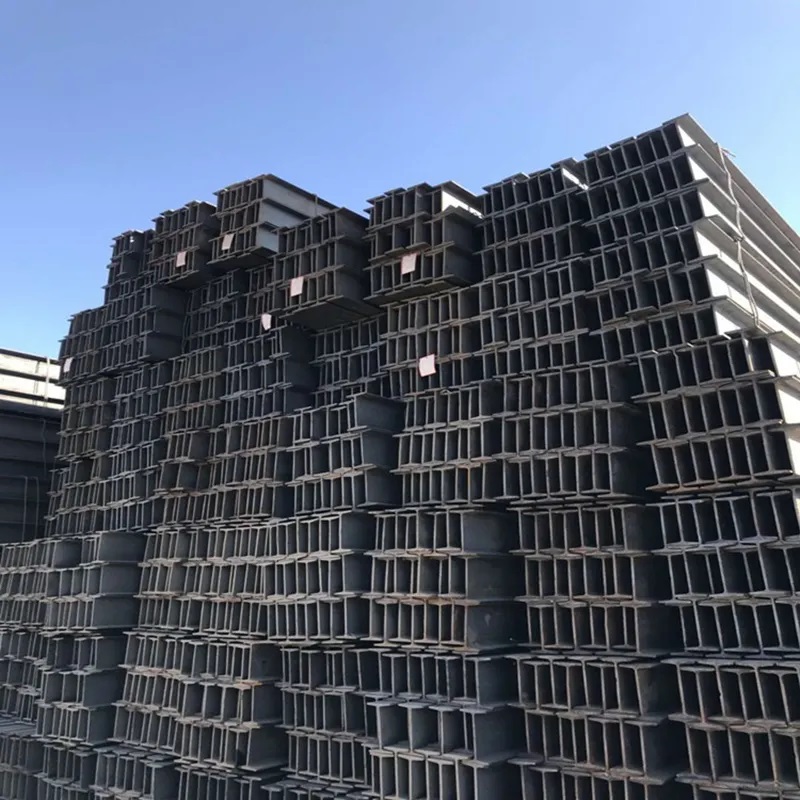

We have a large stock of profile steel, such as H beam steel, I steel beam, angle steel, channel steel, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of saetion steel to meet your various needs.
SEND INQUIRY OR EMAIL ME
|
Code
|
Specification（mm）
|
Height
(mm)
|
Breadth
(mm)
|
Web Thickness
t1(mm)
|
Flange Thickness
t2(mm)
|
Theoretical weight
(kgs/m)
|
|
HW
|
100*100
|
100
|
100
|
6
|
8
|
16.9
|
|
125*125
|
125
|
125
|
6.5
|
9
|
23.6
|
|
|
150*150
|
150
|
150
|
7
|
10
|
31.1
|
|
|
175*175
|
175
|
175
|
7.5
|
11
|
40.4
|
|
|
200*200
|
200
|
200
|
8
|
12
|
49.9
|
|
|
HM
|
150*100
|
148
|
100
|
6
|
9
|
20.7
|
|
200*150
|
194
|
150
|
6
|
9
|
29.9
|
|
|
300*200
|
294
|
200
|
8
|
12
|
55.8
|
|
|
350*250
|
340
|
250
|
9
|
14
|
78.1
|
|
|
HN
|
150*75
|
150
|
75
|
5
|
7
|
14
|
|
175*90
|
175
|
90
|
5
|
8
|
18
|
|
|
200*100
|
200
|
100
|
5.5
|
8
|
20.9
|
|
|
300*150
|
300
|
150
|
6.5
|
9
|
41.2
|
|
|
400*150
|
400
|
150
|
8
|
13
|
55.2
|
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
