Product Description

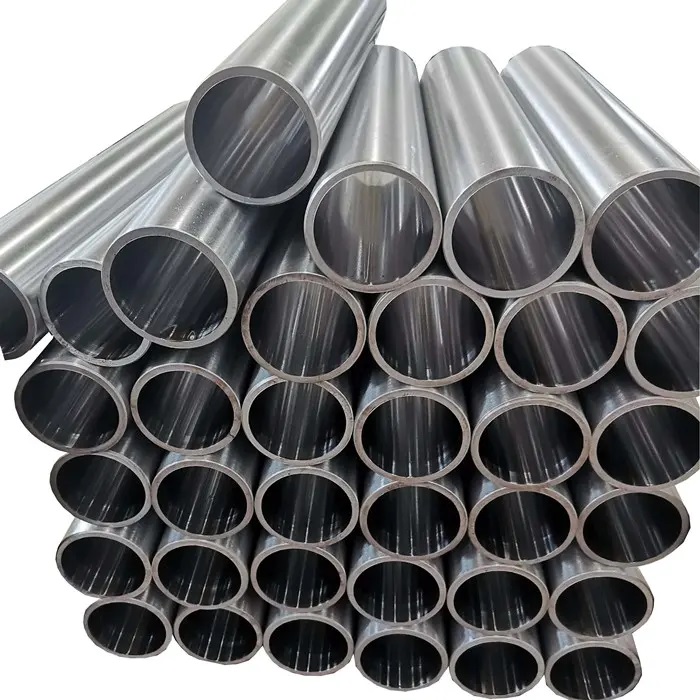

The honed steel pipe is a high-precision steel pipe material that has been processed by cold drawing or hot rolling. Due to the characteristics of no oxide layer on the inner and outer walls of precision steel tubes, no leakage under high pressure, high precision, high smoothness, no deformation in cold bending, flaring, flattening and no cracks, etc., quilting milled pipes are mainly used to produce pneumatic or hydraulic components. Such as cylinder or cylinder seamless pipe.
Features of honed steel pipe
1. Smaller outer diameter.
2. High precision can do small batch production
3. The cold drawn finished product has high precision and good surface quality.
4. The cross-sectional area of the steel pipe is more complicated.
5. The performance of the steel pipe is superior, and the metal is relatively dense.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Product Name | Honed Steel Pipe Steel Tube |
| Standard | DIN2391, EN10305, ASTM A519, GB/T 3639-200 |
| Material | Q355B Q355D C20,ST52,E355 SAE1026.CK45 4130 4140 STKM 13C |
| Heat treatment | BK+S |
| Specification | Outer diameter(mm) : 40-480mm |
| I.D Tolerance | H8-H9 |
| Length | Fixed Length, Random Length(3–9m)or as requests of customers |
| Straightness | 0.5-1/1000 |
| ID roughness | RA 0.1-0.8micron(max) |
| Payment term | FOB, CFR, CIF ,EXW, FCA and so on |
| MOQ | 3 tons |
| Technology | Honed & SRB(SKIVED AND ROLLER BURNISHED ) |
| Application: | hydraulic cylinder, swivel crane, injection machine and so on |
| Conservation | anti rust oiled inside and outside surface, plastic caps in both ends |
| Package | bundle with steel strip and knitting strip, or wooden case |
Product Display
We have a large stock of steel tubes, such as spiral welded steel tube and longitudinal welded steel pipes, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of carbon steel tubes/pipes to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Steel Grade | C | SI | Mn | P | S | Cr | Ni | Cu |
| 20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.25 | 0.25 | |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 | 0.25 | 0.25 | |
| Q345B | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.03 | 0.03 | 0.03 | 0.25 | 0.08 |
| Q345D | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.03 | 0.03 | 0.25 | 0.25 | 0.15 |
| 25Mn | 0.22-0.29 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | |||
| 27SiMn | 0.22-0.32 | 1.10-1.40 | 1.10-1.40 | 0.035 | 0.035 | 0.3 | 0.3 | |
| E355 | ≤0.2 | ≤0.55 | ≤1.6 | 0.025 | 0.025 | |||
| SAE1026 | 0.22-0.28 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.05 |
| Steel Grade | Rm Mpa | ReH Mpa | Elonggation | cold finished Rm Mpa | cold finished Elonggation |
| 20# | ≥520 | ≥375 | ≥15 | ≥550 | ≥8 |
| 45# | ≥600 | ≥520 | ≥10 | ≥640 | ≥5 |
| 16Mn(Q345B /D) | ≥600 | ≥520 | ≥14 | ≥640 | ≥5 |
| 25Mn | ≥600 | ≥510 | ≥15 | ≥640 | ≥5 |
| 27SiMn | ≥760 | ≥610 | ≥10 | ≥800 | ≥5 |
| St45 | ≥520 | ≥375 | ≥15 | ≥550 | ≥5 |
| E355(st52) | ≥600 | ≥520 | ≥14 | ≥640 | ≥5 |
| SAE1026 | ≥600 | ≥510 | ≥15 | ≥640 | ≥5 |
| Working method | range | ID | H8 | H9 | H10 |
| cold drawn | 25-250 | 30-50 | 0.039 | 0.062 | 0.1 |
| cold rolling | 25-150 | 50-80 | 0.046 | 0.074 | 0.12 |
| cold drawn-honed | 40-250 | 80-120 | 0.054 | 0.087 | 0.14 |
| cold drawn-SRB | 50-250 | 120-180 | 0.063 | 0.1 | 0.16 |
| cold drawn -polished | 40-250 | 180-250 | 0.072 | 0.115 | 0.185 |
| cold drawn-polish-SRB | 50-250 | as required | as required | as required | as required |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
