Product Description
We can produce and supply various specifications galvanized steel coil, galvanised steel coils, galvalume steel coil, etc.

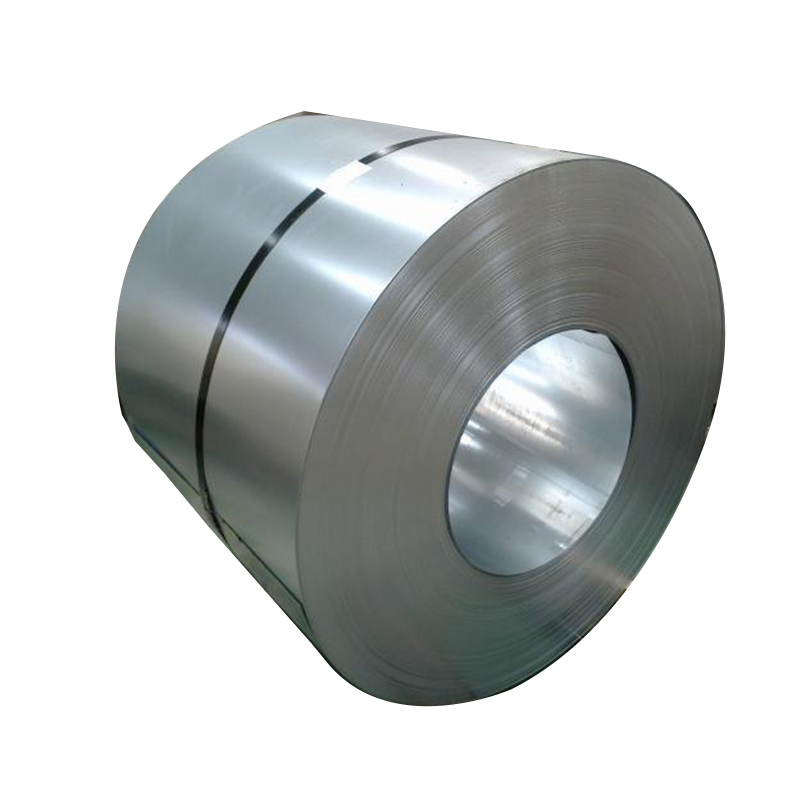

Galvanized steel coil, also called galvanized coil, refers to a thin steel sheet with a layer of zinc adhered on the surface.
There are no spangles, small spangles, regular spangles and large spangles in the zinc layer.
1. Hot-dip galvanized steel coil. The thin coil is immersed in a bath of molten zinc to make a thin steel sheet with a layer of zinc adhered to its surface. At present, the continuous galvanized coil process is mainly used for production, that is, the coiled steel plate is continuously immersed in a galvanized bath with molten zinc to make a galvanized steel plate;
2. Alloyed galvanized coil. This kind of steel panel is also made by hot dip method, but it is heated to about 500℃ immediately after coming out of the tank, so that it can form an alloy film of zinc and iron. This galvanized coil has good paint adhesion and weldability;
3. Electro-galvanized steel coil. The galvanized steel panel manufactured by electroplating has good processability. However, the coating is thinner and its corrosion resistance is not as good as that of hot-dip galvanized panels;
4. Single-sided and double-sided differential galvanized steel coils. Single-sided galvanized coil, that is, a product that is galvanized on only one side. In terms of welding, painting, anti-rust treatment, processing, etc., it has better adaptability than double-sided galvanized sheet. In order to overcome the disadvantages of uncoated zinc on one side, there is another kind of galvanized coil coated with a thin layer of zinc on the other side, that is, double-sided differential galvanized sheet;
5. Alloy and composite galvanized steel coils. It is an alloy made of zinc and other metals such as lead and zinc or even a composite plated steel plate. This kind of steel plate not only has good antirust performance, but also has good coating performance.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
| Type | Coil/Sheet/Plate/Strip |
| Thickness | 0.12-6.00mm,or customer’s requirement |
| Width | 600mm-1500mm, according to customer’s requirement |
| Type of Coating | Hot Dipped Galvanized Steel (HDGI) |
| Zinc Coating | 30-275g/m2 |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| ID | 508mm/610mm |
| Coil Weight | 3-20 metric ton per coil |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer’s requirement |
| Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
Product Display
We have a large stock of steel coils, such as carbon steel coil, alloy steel coil, hot rolled steel coils, cold rolled steel sheet in coil, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of GI steel coils to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Usage | Grade | Yield Strength (MPA) | Tensile Strength (MPA) | Elongation rate % |
| Punching galvanized steel | DX51D+Z | ~ | 270-500 | >=20 |
| DX52D+Z | 140-300 | 270-420 | >=22 | |
| DX53D+Z | 140-260 | 270-380 | >=26 | |
| DX54D+Z | 140-220 | 270-350 | >=30 | |
| Structure galvanized steel | S220GD+Z | >=220 | >=300 | >=18 |
| S250GD+Z | >=250 | >=330 | >=17 | |
| S280GD+Z | >=280 | >=360 | >=16 | |
| S320GD+Z | >=320 | >=390 | >=15 | |
| S350GD+Z | >=350 | >=420 | >=14 | |
| S400GD+Z | >=400 | >=470 | ~ | |
| S500GD+Z | >=500 | >=530 | ~ | |
| S550GD+Z | >=550 | >=560 | ~ |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
