Video Description
Product Description
We can produce and supply various specifications galvanized steel coils, galvanised steel coils, galvalume steel coil, etc.
Galvanized steel sheets are steel sheets with hot-dip galvanized or electro-galvanized layers on the surface, so galvanized steel sheets can be divided into hot-dip galvanized steel sheets (SGCC) and electro-galvanized steel sheets (SECC), which are generally widely used in construction, household appliances, vehicles, and containers. Manufacturing, mechanical and electrical industries, etc.
Galvanized steel sheets are divided into ordinary electrolytic sheets and anti-fingerprint electrolytic sheets. The anti-fingerprint plate is based on the ordinary electrolytic plate with a fingerprint-resistant treatment, which can resist sweat. It is generally used on parts without any treatment. The brand is SECC-N. Ordinary electrolytic plates are divided into phosphating plates and passivation plates. Phosphating is more commonly used. The brand is SECC-P, commonly known as p material. Passivated plates are oiled and unoiled.
Hot-dip galvanized steel sheet (SGCC) is better than electro-galvanized steel sheet (SECC)
SEND INQUIRY OR EMAIL ME
Standards and Classifications
Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
Type | Coil/Sheet/Plate/Strip |
Thickness | 0.12-6.00mm,or customer’s requirement |
Width | 600mm-1500mm, according to customer’s requirement |
Type of Coating | Hot Dipped Galvanized Steel (HDGI) |
Zinc Coating | 30-275g/m2 |
Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
Quality | Approved by SGS,ISO |
ID | 508mm/610mm |
Coil Weight | 3-20 metric ton per coil |
Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer’s requirement |
Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |

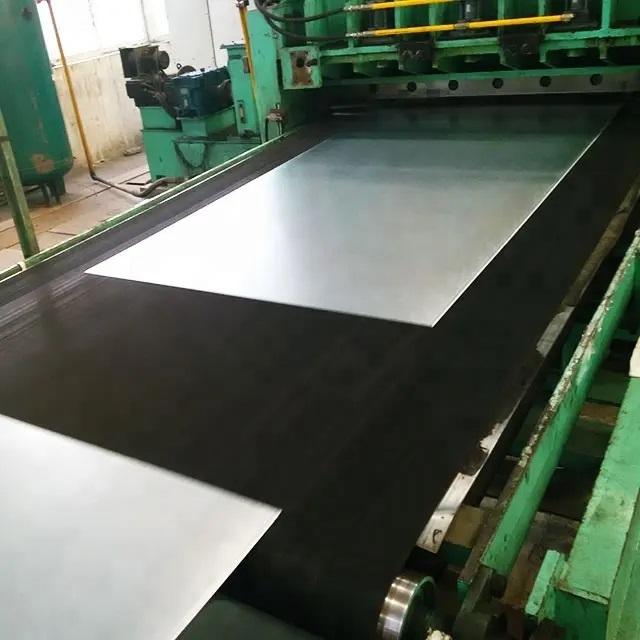

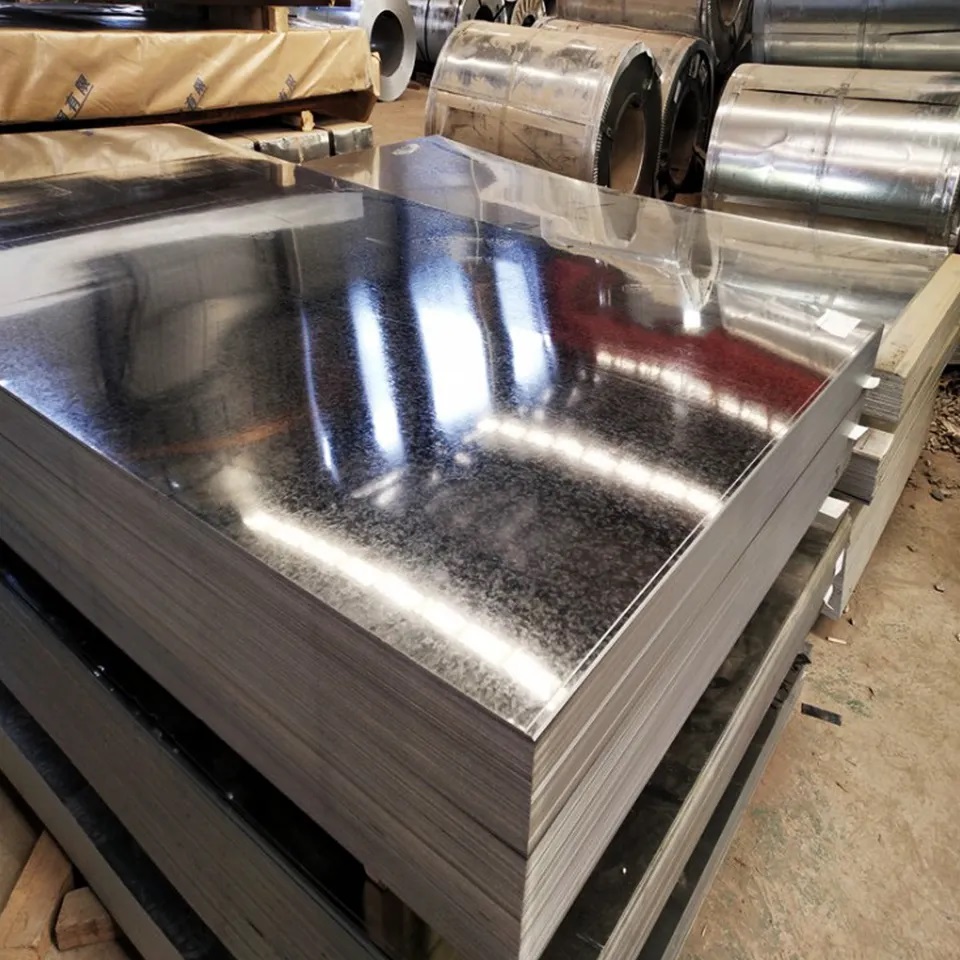

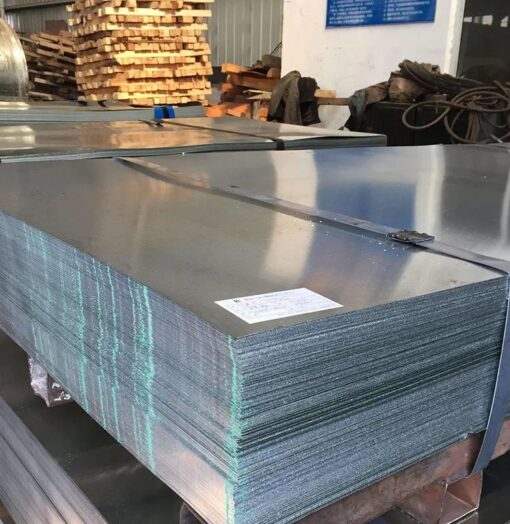

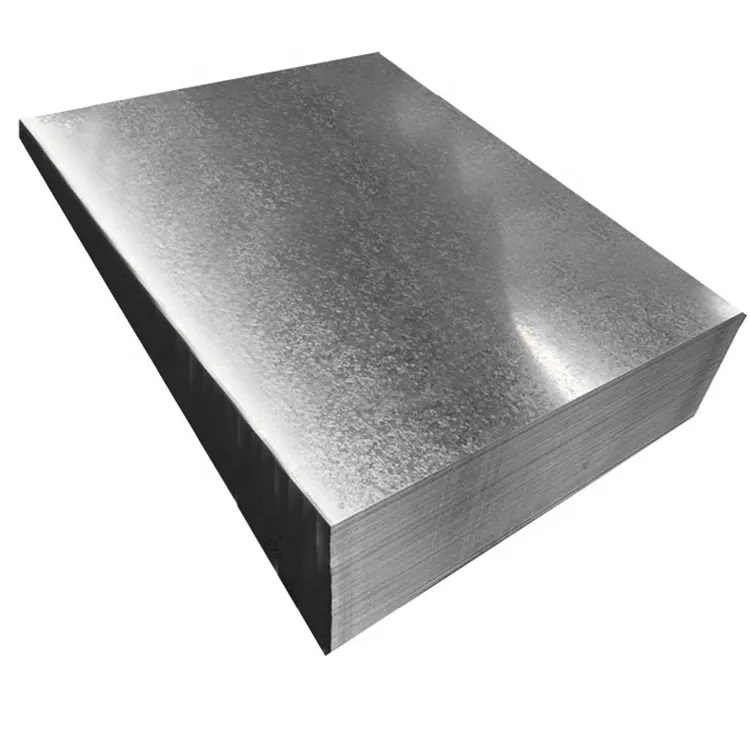

Product Display
We have a large stock of Galvanized Steel Sheets, gi sheet, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
![](https://www.sdyytit.com/wp-content/uploads/2023/07/galvanized-steel-sheet-ms-plates-cold-steel-plates-Gi-Sheet.jpg)
We can supply various types of HDGI Sheets to meet your various needs.
SEND INQUIRY OR EMAIL ME
Usage | Grade | Yield Strength (MPA) | Tensile Strength (MPA) | Elongation rate % |
Punching galvanized steel | DX51D+Z | ~ | 270-500 | >=20 |
DX52D+Z | 140-300 | 270-420 | >=22 | |
DX53D+Z | 140-260 | 270-380 | >=26 | |
DX54D+Z | 140-220 | 270-350 | >=30 | |
Structure galvanized steel | S220GD+Z | >=220 | >=300 | >=18 |
S250GD+Z | >=250 | >=330 | >=17 | |
S280GD+Z | >=280 | >=360 | >=16 | |
S320GD+Z | >=320 | >=390 | >=15 | |
S350GD+Z | >=350 | >=420 | >=14 | |
S400GD+Z | >=400 | >=470 | ~ | |
S500GD+Z | >=500 | >=530 | ~ | |
S550GD+Z | >=550 | >=560 | ~ |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME

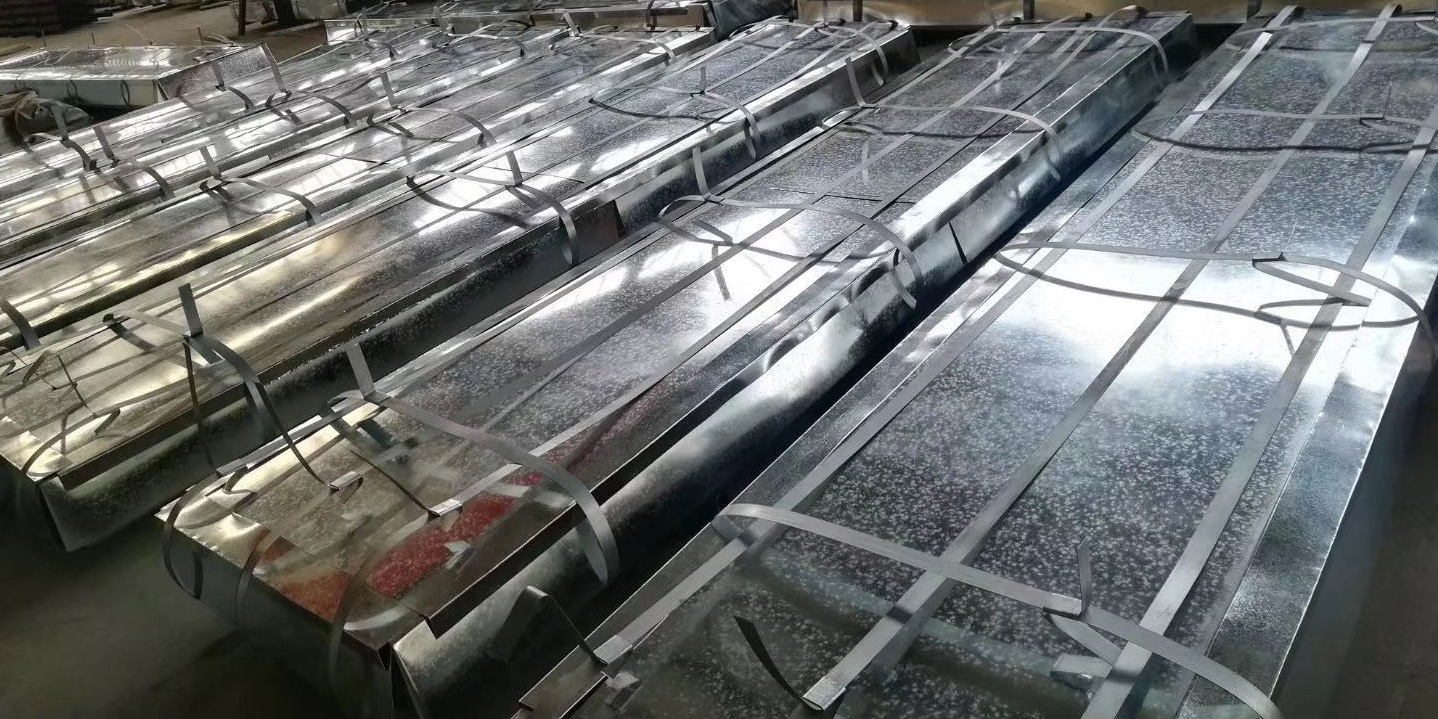

Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
