We can produce and supply various specifications galvalume steel coil, aluzinc steel coils, galvanized steel coil, galvanised steel coils, etc.
Galvalume-coated steel coils are divided into anti-fingerprint (AFP) galvalume steel coils and ordinary aluzinc steel coils.
Galvalume steel coils, also known as aluzinc steel coil, are composed of 55% aluminum, 43.4% zinc, and 1.6% silicon by weight. The production process of al-zn steel coils are similar to that of galvanized steel coils and aluminum-coated coil, which is a continuous fusion coating process. Galvalume-coated steel coils with 55% Al-Zn alloy coating have superior corrosion resistance when exposed to the same environment on both sides compared with galvanised steel coils of the same thickness. The 55% aluminum-zinc alloy coated GL steel coil not only has good corrosion resistance, but also its color-coated steel coil products have excellent adhesion and flexibility.
application:
Construction: roofs, walls, garages, acoustic walls, pipes and prefabricated houses, etc.
Automotive: mufflers, exhaust pipes, wiper accessories, fuel tanks, truck boxes, etc.
Home appliances: refrigerator back panel, gas stove, air conditioner, electronic microwave oven, LCD frame, CRT explosion-proof belt, LED backlight, electrical cabinet, etc. Agricultural use: pig house, chicken house, granary, greenhouse pipes, etc.
Others: heat insulation cover, heat exchanger, dryer, water heater, etc.
Standard & Grade:
ASTM A792-A792M–Standard Specification for Steel Sheet, 55 % Aluminum-Zinc Alloy-Coated by the Hot-Dip Process
Grade: CS TYPE A, CS TYPE B, SS230, SS255, SS275, SS340, SS550, FS, DS, HTS
EN 10346–Continuously hot-dip coated steel flat products – Technical delivery conditions
Grade: DX51D, DX52D, DX53D, DX54D, DX55D, DX56D, DX57D, SS220GD, SS250GD, SS280GD, SS320GD, SS350GD, SS550GD
JISG 3321–Hot-dip 55 % aluminium-zinc alloy-coated steel sheet and strip
Grade: SGLHC, SGLH400, SGLH440, SGLH490, SGLH540, SGLCC, SGLCD, SGLCDD, SGLC400, SGLC440, SGLC490, SGLC570
GBT 14978–Continuously hot dip aluminum-zinc alloy coated steel sheet and strip
Grade: DX51D, DX52D, DX53D, DX54D, DX55D, DX56D, DX57D, SS220GD, SS250GD, SS280GD, SS320GD, SS350GD, SS550GD
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Product name | Galvalume steel coil 55% Al-Zn steel coils |
| Standard | JIS G3321 / ASTM A792M / EN10215 |
| Grade | SGLCC/SGLCD/SGLC490/SGLC570/ CS TypeA,B,C/DS/255/ DX51D+AZ/DX52D+AZ/S250GD+AZ/S350GD+AZ/S550GD+AZ |
| Thickness | 0.10-4.0 mm |
| Width | 600-1250mm (usual size:914mm,1000mm,1200mm,1219mm,1250mm,1220mm) |
| Coil ID | 508mm, 610mm |
| Color weight | 4-6 tons |
| Packing | Standard seaworthy export packing: waterproof paper+steel trip packed+wooden case seaworthy package |
| Delivery | Within 10-15 days |
| Price | FOB&CNF&CIF price |
| Payment terms | TT or L/C |
| Application: | Prengineered steel buildings, industrial and commercial roofing and cladding,agricultural buildings, building accessories, light steel framing, Quonset huts, construction tubular, appliance, and automotive. |

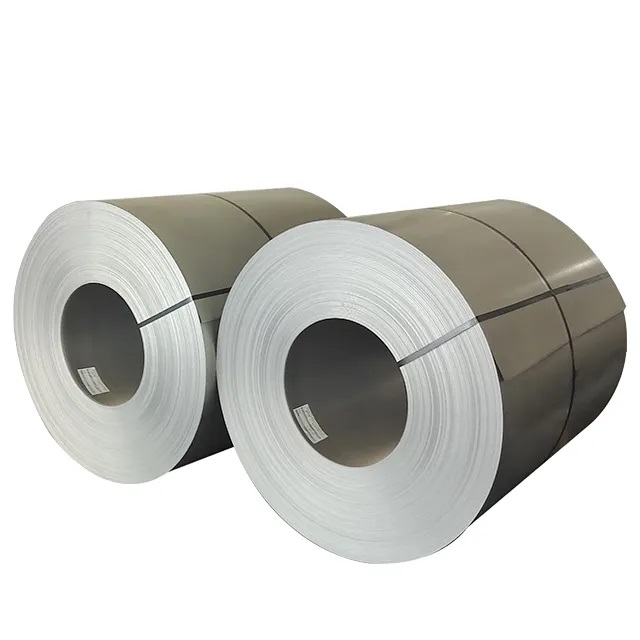

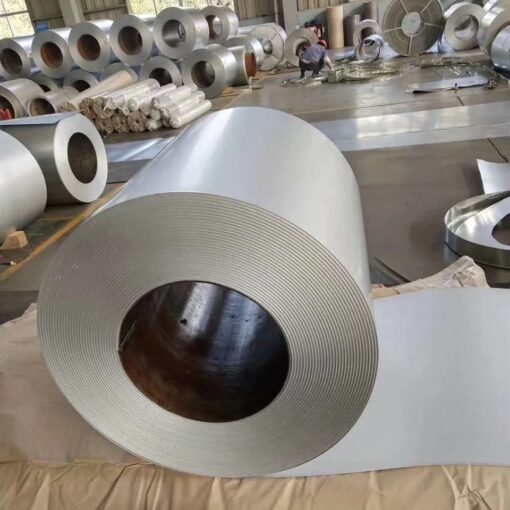

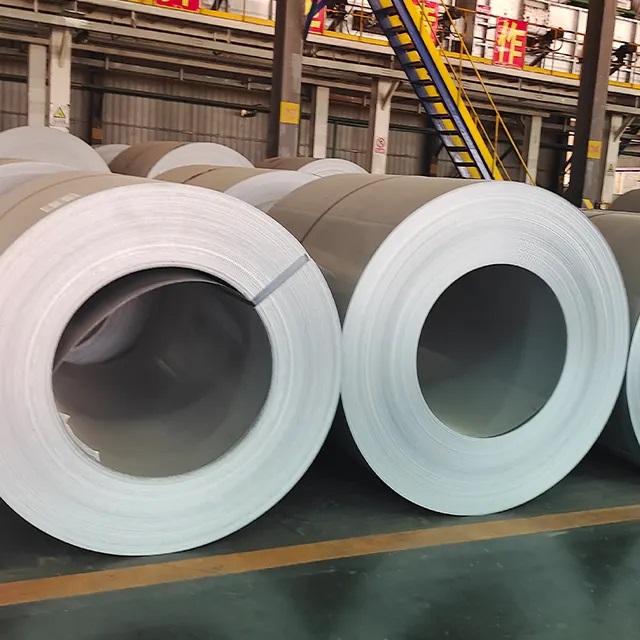

Product Display

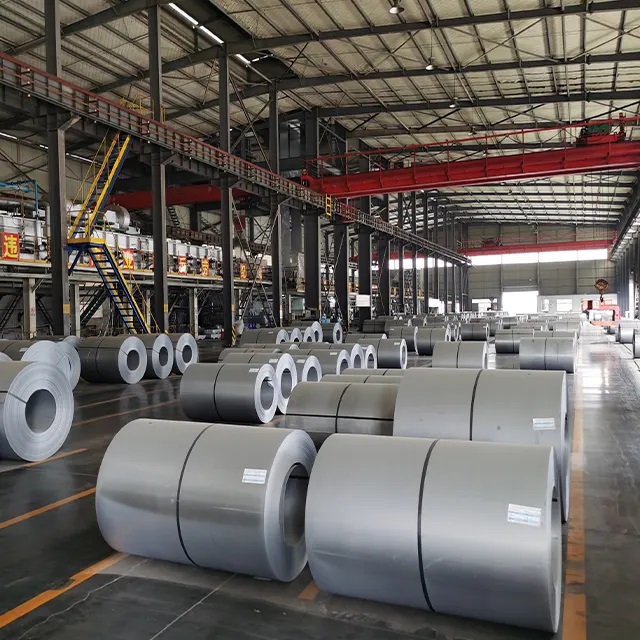

We have a large stock of steel coils, such as carbon steel coil, alloy steel coil, hot rolled steel coils, cold rolled steel sheet in coil, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of GL steel coils to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Standard and Steel Grade | |||||||
| Standard | Steel Grade | Thickness (mm) | Width (mm) | Spangle | AZ Coating (g/m2) | Coil Weight (mt) | Treatment |
| JIS G3321:1998 | SGLCC SGLCD |
0.15-2.0 | 750-1250 | Regular Minimized | 30-180 | 3-20 | C,O,CO,U,AFP |
| EN 10215-1995 | DX51D+AZ DX52D+AZ S250GD+AZ S350GD+AZ S550GD+AZ |
0.15-2.0 | 750-1250 | Regular Minimized | 30-180 | 3-20 | C,O,CO,U,AFP |
| ASTM A792M-02 | CS-B CS-C DS 255 550 |
0.15-2.0 | 750-1250 | Regular Minimized | 30-180 | 3-20 | C,O,CO,U,AFP |
| AS 1397-2001 | G2+AZ G3+AZ G250+AZ G350+AZ G550+AZ |
0.15-2.0 | 750-1250 | Regular Minimized | 30-180 | 3-20 | C,O,CO,U,AFP |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME

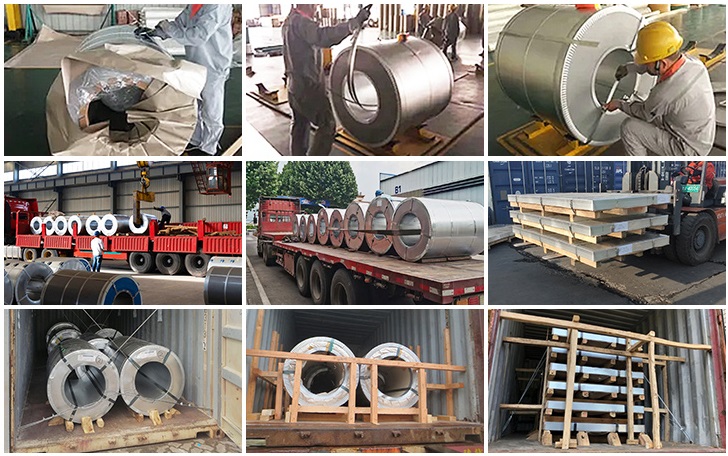

Packing & Delivery

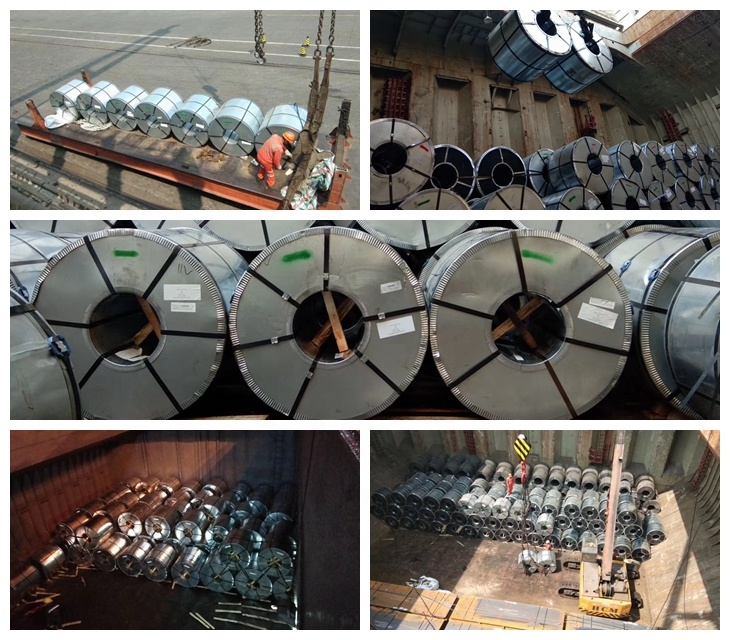

Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
