We can produce and supply various specifications steel bar, flat bar steel, square steel bar, steel round bar, etc.
Flat steel bar refers to steel with a width of 12-300mm, a thickness of 3-60mm, a rectangular cross-section and slightly blunt edges. Flat steel bars can be finished steel, and can also be used as blanks for welded pipes and thin slabs for stacked thin plates. Main application: Flat steel can be used as a finished material to make hoop iron, tools and mechanical parts, and it can be used as a structural part of a house frame and an escalator in a building.
Flat steel bar is divided into carbon steel flat steel, galvanized flat steel and stainless steel flat steel bar according to the material.
According to the forging process, flat steel can be divided into: hot rolled flat steel and forged flat steel
1. Hot rolled flat steel bar
Hot-rolled flat steel is a general-purpose rolled long strip of steel with a rectangular cross-section. Its specifications are expressed in millimeters of thickness * width, flat steel can be finished steel, used for components, ladders, bridges and fences, etc. Flat steel can also be used as billets for welding and welding and slabs for stacked thin plates. (Material: Q215, Q235), executive standard: GB704-1988 instead of GB704-83, this standard applies to general-purpose hot-rolled flat steel with a thickness of 3~60mm, a width of 10~200mm, and a rectangular cross-section. Delivery status: Flat steel is delivered in straight strips. Measuring method: flat steel with fixed length and door length is delivered according to theoretical weight.
2. Forged flat steel
Forged flat steel is a forged long steel plate with a rectangular cross-section. Unfair forging can obtain forgings of a certain shape and size, and at the same time can significantly improve the as-cast structure of the steel and increase the density of the steel; it can change the distribution of the fiber structure, remove anisotropy, improve the mechanical properties of the metal, and make the strength and The toughness has been improved; and it can process high-volume steel and high-alloy steel with low plasticity. Forged flat steel is mainly high-quality alloy steel, which is mainly used as springs, tools and important mechanical parts. The specifications of forged flat steel are expressed in millimeters of thickness * width, and the specifications are 20mm*40mm~160mm*300mm. Executive standard: GB/T16761-1
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Products | Flat Steel bar |
| Width | 1000-1500mm or as required |
| Length | 3m,6m,9m,12m |
| Standard | ASTM A 615 Gr 40/60,BSS4449 Gr460B,500B etc |
| Material | Q195, Q235, Q345, SAE1010, SAE1020, SAE1045, EN8, EN19, C45, CK45, SS400 etc. S235JR, S275JR,42CrMo; 40CrNiMo etc. 1010, 1015, 1020, 1030, 1035, 1040, 1045, 1050, 1055, 1060, 5120, 5130, 4130, 4140, etc. |
| Surface | ASTM，AISI，JIS，GB， DIN，EN |
| Technique | Hot rolled / cold rolled |
| Surface | Black Finish ,Oiled,Shot Blasted,Spray Paint,Coated,Galvanized, |
| Or as Your Request | |
| Package | In bundle, no other package or wrapped with waterproof, or as customers’ requirement |
| Payment Term | T/T, L/C at sight,West Union,Paypal |
| Price Term | FOB,CRF,CIF,EXW all acceptable |
Product Display

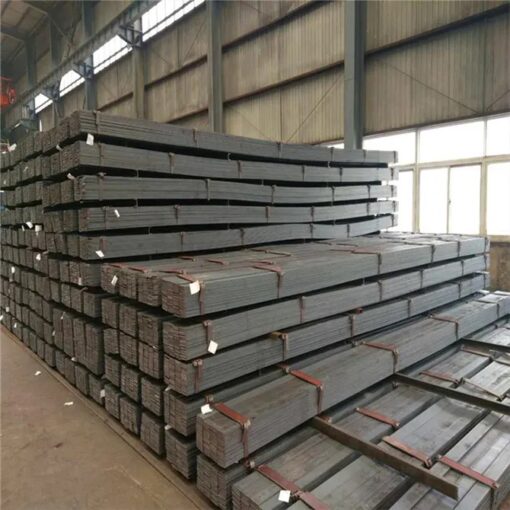

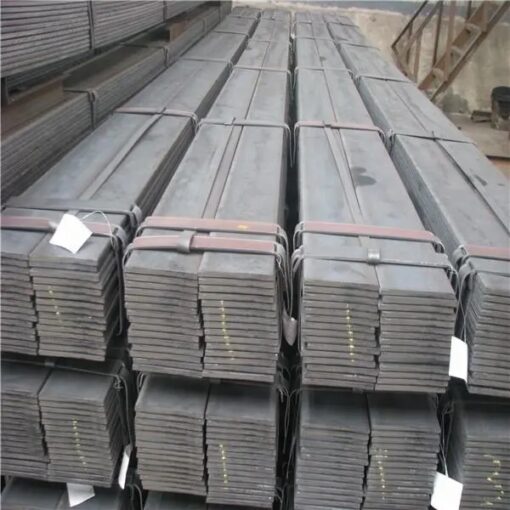

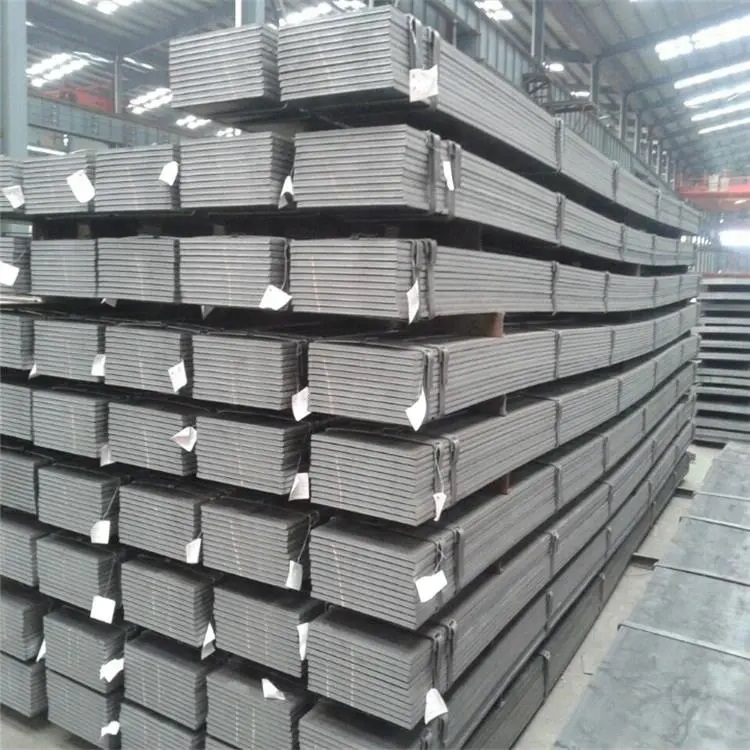

We have a large stock of steel bars, such as square steel bar, steel flat bar, steel round rod, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of GI steel bars to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Brand | Carbon Steel, mm |
| Q195、Q215A、Q215B、Q235A、 | 1.5～ 25.4 ×780～2100× 2000 ～12000 |
| Q235B、Q235C、Q235D | |
| SS330、SS400 | 1.5～25.4 ×780～2100× 2000 ～ 12000 |
| S235JR+AR、S235J0+AR、S275JR+AR、S275J0+AR | |
| SPHC、SPHD | 1.5～14.0×780～2100× 2000 ～ 12000 |
| SPHE | 1.5 ～ 6.0 ×780 ～2100× 2000 ～ 12000 |
| DD11、DD12、DD13 | 1.5 ～ 8.0 ×780 ～2100× 2000 ～ 12000 |
| HCP |
| Brand | Appropriate standard |
| Q195、Q215A ～ Q235D | GB/T 709 |
| SS330、SS400 | JIS G 3193 |
| S235JR+AR、S235J0+AR | EN 10029 |
| S275JR+AR、S275J0+AR | |
| SPHC、SPHD、SPHE | JIS G3193 |
| DD11、DD12、DD13 | EN 10051 |
| HCP | WJX(RZ)571 |
| S45C | 0.42~0.48 | 0.60~0.90 | 0.15~0.35 | ≤0.03 | ≤0.03 | ≤0.20 | ≤0.20 | ≤0.30 | _ | _ | JIS G4051-2005 |
| S20C | 0.18~0.23 | 0.30~0.60 | 0.15~0.35 | ≤0.03 | ≤0.035 | ≤0.20 | ≤0.20 | ≤0.30 | _ | _ | |
| ASTM A36 | ≤0.22 | 0.50~0.90 | ≤0.40 | ≤0.040 | ≤0.050 | ≤0.20 | ≤0.20 | ≤0.30 | ≥250 | 400~500 | ASTM A36/A36M-03a |
| ASTM A105 | ≤0.35 | 0.6-1.05 | ≤0.35 | ≤0.050 | ≤0.040 | ≤0.20 | ≤0.20 | ≤0.30 | ≥310 | 485~620 | ASTM A105/A105M |
| SAE1013 | 0.11~0.16 | 0.50~0.80 | _ | ≤0.040 | ≤0.050 | ≤0.20 | ≤0.20 | ≤0.30 | _ | _ | ASTM A568/A568M-91a |
| SAE1015 | 0.13~0.18 | 0.30~0.60 | _ | ≤0.040 | ≤0.050 | ≤0.20 | ≤0.20 | ≤0.30 | _ | _ | |
| SAE1017 | 0.15~0.20 | 0.30~0.60 | _ | ≤0.040 | ≤0.050 | ≤0.20 | ≤0.20 | ≤0.30 | _ | _ | |
| SAE1018 | 0.15~0.20 | 0.60~0.90 | _ | ≤0.040 | ≤0.050 | ≤0.20 | ≤0.20 | ≤0.30 | _ | _ | |
| SAE1020 | 0.18~0.23 | 0.30~0.60 | _ | ≤0.040 | ≤0.050 | ≤0.20 | ≤0.20 | ≤0.30 | _ | _ | |
| S235JR | 0.15~0.20 | ≤1.4 | _ | ≤0.035 | ≤0.035 | ≤0.20 | _ | _ | ≥235 | 400~510 | EN10025 |
| S275JR | ≤0.22 | ≤1.4 | _ | ≤0.035 | ≤0.035 | ≤0.20 | _ | _ | ≥275 | 490~610 | |
| ST37-2 | 0.17~0.20 | ≤1.4 | _ | ≤0.045 | ≤0.045 | ≤0.20 | _ | _ | ≥235 |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
