Product Description
We can produce and supply various specifications carbon steel coils, hot rolled steel coils and cold rolled steel coils, etc.

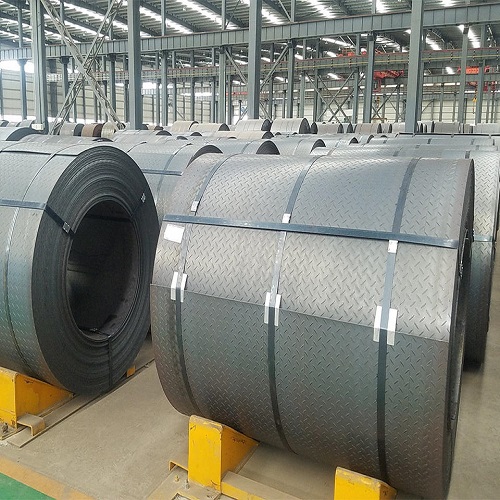

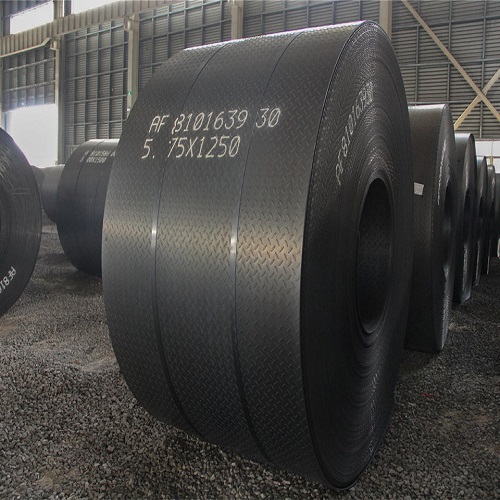

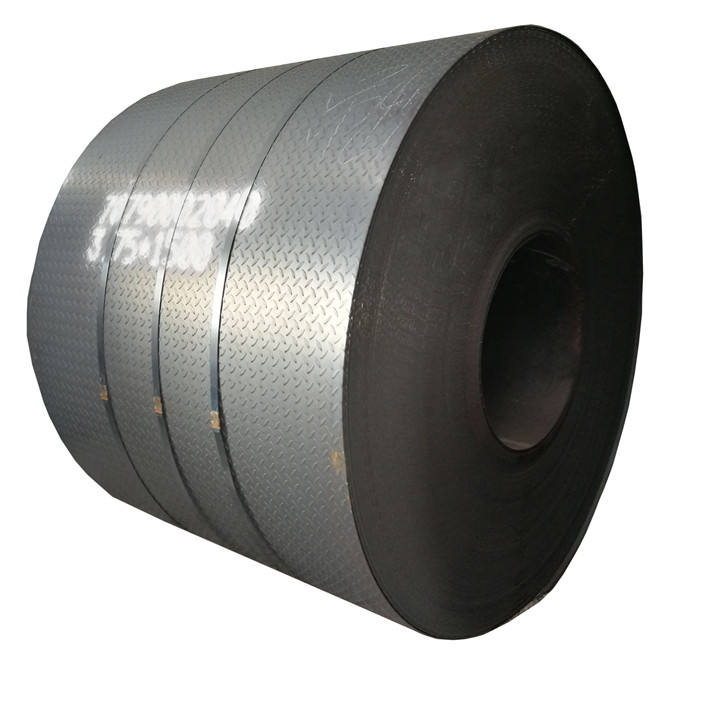

Checkered steel coil, also known as patterned steel coil, is a hot-rolled steel coil with rhombus or ridges on its surface.
The pattern of the chequered steel coil can be a single rhombus, lentil or round bean shape, and can also be properly combined with two or more patterns to form a combined pattern plate.
The pattern of the checker steel coils mainly plays the role of anti-slip and decoration. The combined effects of anti-slip ability, bending resistance, metal saving and appearance of combined checkered plate are obviously better than single checkered plate.
Checkered steel plates are widely used in shipbuilding, boilers, automobiles, tractors, train carriages and construction industries.
The checkered steel plate can be used as floors, factory escalators, working frame pedals, ship decks, and automobile floor plates because of its ribbed surface and anti-skid effect.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Standard and Steel Grade | |
| Product Name | Chequered Steel Coil / Checker Steel Coils / Checkered Steel Coil |
| Standard | GB/T709-2006, ASTM A36, JIS G3101, DIN EN 10025, SAE 1045, ASTM A570 |
| Grade | SS400, ASTM A36, A572, ST37, ST52, Q195, Q215, Q235, Q345, S235JR, S355JR, S45C, S50C |
| Thickness | 1.5mm-16mm |
| Width | 600mm-2200mm |
| Coil Weight | 5mt-27mt |
| Sheet Length | 2m-12m |
| Pattern | Hyacinth Bean, Tear Drop, Diamond, Chrysanthemum..etc. |
| Surface | Black or galvanized |
| Application | Automobile, Bridges, Buildings Machinery, Pressure Vessels Industry Shipbuilding, Engineering, Construction |
Product Display
We have a large stock of steel coils, such as carbon steel coils, alloy steel coil, hot rolled steel coils, cold rolled steel sheet in coil, checkered steel coil, etc. Welcome to visit our factory at any time.

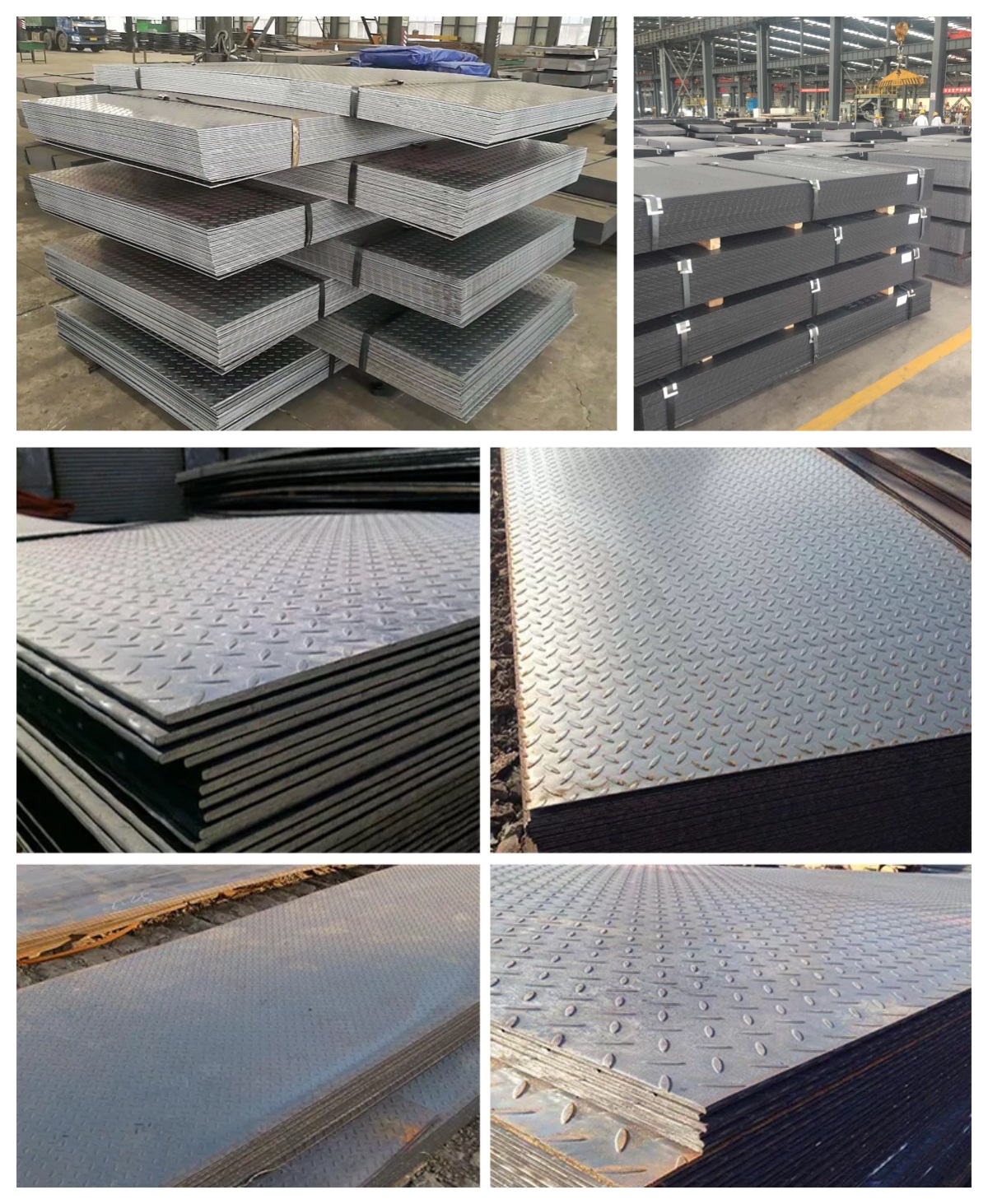

Checker plate is also called diamond plate or tread plate. It has a raised surface, which provide excellent anti-slip function. Benefit from this advantage, the checker plate is commonly used in the factory, industry and workshop for the anti-slip floorings, floor treads or platforms.
SEND INQUIRY OR EMAIL ME
We can supply various types of carbon steel coils to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Basic thickness | Tolerance of Basic thickness | Theoretical weight (kg/m²) | ||
| Diamond | Lentils form | Round beans form | ||
| 2.5 | ±0.3 | 21.6 | 21.3 | 21.1 |
| 3 | ±0.3 | 25.6 | 24.4 | 24.3 |
| 3.5 | ±0.3 | 29.5 | 28.4 | 28.3 |
| 4 | ±0.4 | 33.4 | 32.4 | 32.3 |
| 4.5 | ±0.4 | 37.3 | 36.4 | 36.2 |
| 5 | +0.4/-0.5 | 42.3 | 40.5 | 40.2 |
| 5.5 | +0.4/-0.5 | 46.2 | 44.3 | 44.1 |
| 6 | +0.4/-0.6 | 50.1 | 48.4 | 48.1 |
| 7 | +0.6/-0.7 | 59 | 52.6 | 52.4 |
| 8 | +0.6/-0.8 | 66.8 | 56.4 | 56.2 |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
