We can produce and supply various specifications profile steel, C purlin steel, U channel steel, channel steel bar, etc.
C channel steel is a building material used in steel structure buildings, etc., and C type steel is automatically processed and formed by a C-shaped steel forming machine. The C-shaped steel forming machine can automatically complete the forming process of the C-shaped steel according to the given C beam steel size.
The classification of C channel steel includes galvanized C-shaped steel, hot-dip galvanized C purlin steel for cable tray, C-beam steel for glass card groove, C-shaped steel for glass curtain wall, C-shaped steel for wiring trough, reinforced C-shaped steel, double-clad C-shaped steel, single-sided C-shaped steel, Manual forklift C-shaped steel, unequal-sided C-shaped steel, straight-sided C-shaped steel, beveled C-shaped steel, inner curled C-shaped steel, inner beveled C-shaped steel, roof (wall) purlin C-shaped steel, automobile profile C-shaped steel, highway column C-shaped steel, C-shaped steel for solar support (21-80 series), C-shaped steel for formwork support, precision C-shaped steel for equipment, etc.
C-shaped steel purlins are divided into five specifications of 80, 100, 120, 140, and 160 according to different heights.
C-shaped steel is widely used in purlins and wall beams of steel structure buildings, and can also be combined into lightweight roof trusses, brackets and other building components. In addition, it can also be used for columns, beams and arms in mechanical light industry manufacturing.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
|
Material
|
Q235; A36; SS400; ST37; SAE1006/1008; S275JR; Q345,S355JR; 16Mn; ST52 .etc, Or Customized
NVA, NVD, A32, A36, AH32, AH36,B, 16MnL, D32, D36, DH32, DH36, EH32, 36, Q195, Q235, Q235B, Q345, 1050#, 16Mn, 20Mn, 35Mn, 45Mn, 50Mn, 20Mn2, 35Mn2, 45Mn2, 15CrMo, 35CrMo, 42CrMo, 20CrMo, 12Cr1MoV, 27SiMn, 60Si2Mn, 20Cr, 40Cr15GrMoG, 10GrMo910, 12Gr2MoG, 12Gr1MoVG, 1Gr5Mo, 1Gr9Mo , P11, T11, T91, T22, P22, P5, P9, WB36
|
|||
|
Surface
|
Pre-galvanised/Hot dipped galvanised/Power coated
|
|||
|
Shape
|
C/H/T/U/Z type
|
|||
|
Thinckness
|
0.3mm-60mm
|
|||
|
Widthness
|
50mm~2000mm or customized
|
|||
|
Length
|
1000mm~8000mm or customized
|
|||
|
Certifications
|
ISO 9001 BV SGS
|
|||
|
Keyword
|
carbon steel channel
|
|||
|
Packing
|
Industry standard packaging or according to client’s requirement
|
|||
|
Payment terms
|
30%T/T in advance, the balance against the B/L copy
|
|||
|
Delivery time
|
Fast delievery in 7 days,up to order quantity
|
|||
Product Display

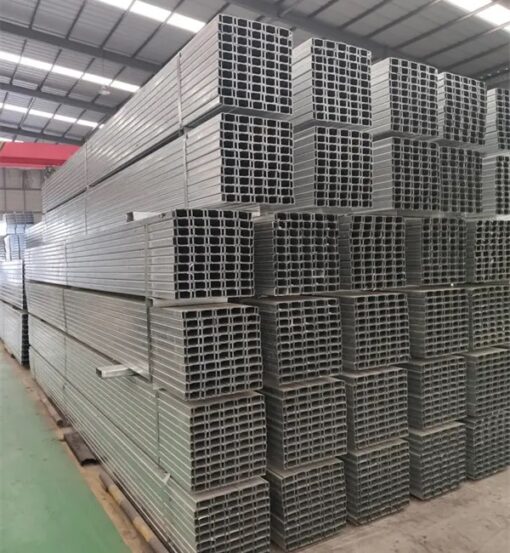

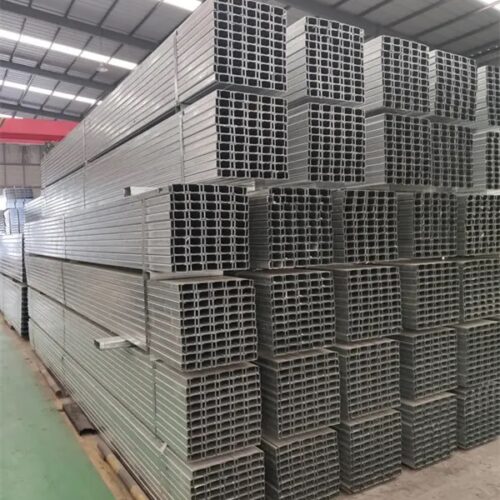

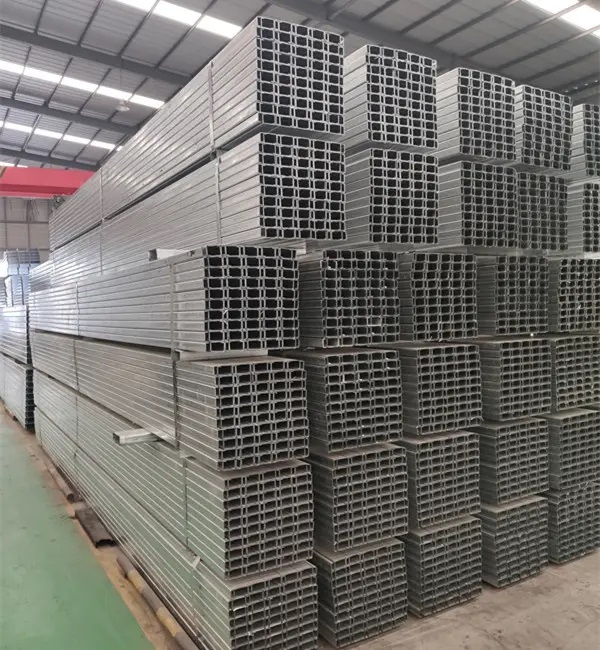

We have a large stock of channel steel, such as C channel steel, U channel beam steel, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of channel steel bars to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Size (mm) | Weight（kg/m） | Size (mm) | Weight（kg/m） |
| 80×40×20×2.5 | 3.925 | 180×60×20×3 | 8.007 |
| 80×40×20×3 | 4.71 | 180×70×20×2.5 | 7.065 |
| 100×50×20×2.5 | 4.71 | 180×70×20×3 | 8.478 |
| 100×50×20×3 | 5.652 | 200×50×20×2.5 | 6.673 |
| 120×50×20×2.5 | 5.103 | 200×50×20×3 | 8.007 |
| 120×50×20×3 | 6.123 | 200×60×20×2.5 | 7.065 |
| 120×60×20×2.5 | 5.495 | 200×60×20×3 | 8.478 |
| 120×60×20×3 | 6.594 | 200×70×20×2.5 | 7.458 |
| 120×70×20×2.5 | 5.888 | 200×70×20×3 | 8.949 |
| 120×70×20×3 | 7.065 | 220×60×20×2.5 | 7.4567 |
| 140×50×20×2.5 | 5.495 | 220×60×20×3 | 8.949 |
| 140×50×20×3 | 6.594 | 220×70×20×2.5 | 7.85 |
| 160×50×20×2.5 | 5.888 | 220×70×20×3 | 9.42 |
| 160×50×20×3 | 7.065 | 250×75×20×2.5 | 8.634 |
| 160×60×20×2.5 | 6.28 | 250×75×20×3 | 10.362 |
| 160×60×20×3 | 7.536 | 280×80×20×2.5 | 9.42 |
| 160×70×20×2.5 | 6.673 | 280×80×20×3 | 11.304 |
| 160×70×20×3 | 8.007 | 300×80×20×2.5 | 9.813 |
| 180×50×20×2.5 | 6.28 | 300×80×20×3 | 11.775 |
| 180×50×20×3 | 7.536 | ||
| 180×60×20×2.5 | 6.673 |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
