Product Description
We can produce and supply various specifications profile steel, U channel steel, C steel beam, channel steel bar, etc.

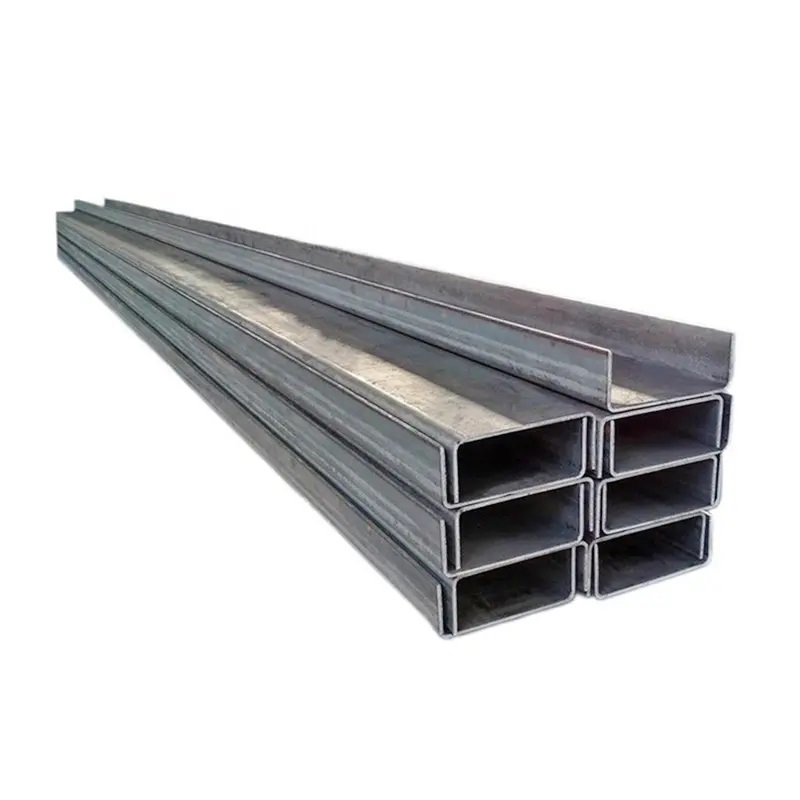

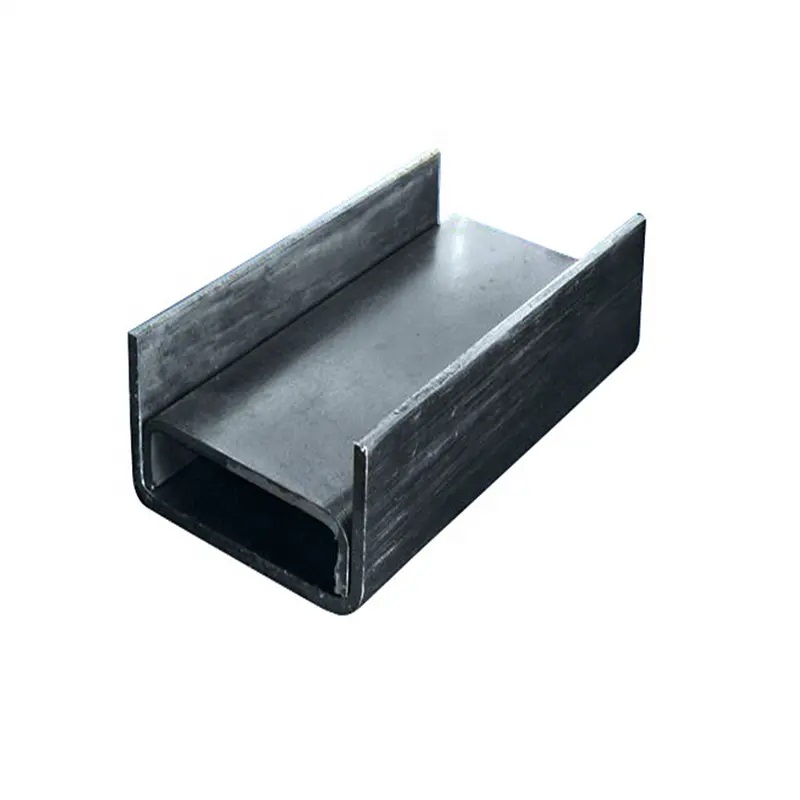

U channel steel is a kind of steel with a cross section like the English letter “U”. It is generally produced by cold rolling. Usually, corresponding molds (rollers) are made according to production needs or customer needs and installed on the rolling mill to roll the iron sheet into a whole. U beam steel that requires specifications.
There are mainly four types of U-shaped steel: 18U, 25U, 29U, and 36U.
U channel beam is mainly used for road guardrails, steel structures, steel formwork and scaffolding, ships and bridges, railway vehicles, steel sheet piles, automobiles, containers, transmission towers, etc.
U-shaped steel beam variety name: cold-formed U-shaped steel, large-scale U-shaped steel, U-beam steel for automobiles, hot-dip galvanized U channel steel and other open cold-formed U steel.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
|
Material
|
Q235; A36; SS400; ST37; SAE1006/1008; S275JR; Q345,S355JR; 16Mn; ST52 .etc, Or Customized
NVA, NVD, A32, A36, AH32, AH36,B, 16MnL, D32, D36, DH32, DH36, EH32, 36, Q195, Q235, Q235B, Q345, 1050#, 16Mn, 20Mn, 35Mn, 45Mn, 50Mn, 20Mn2, 35Mn2, 45Mn2, 15CrMo, 35CrMo, 42CrMo, 20CrMo, 12Cr1MoV, 27SiMn, 60Si2Mn, 20Cr, 40Cr15GrMoG, 10GrMo910, 12Gr2MoG, 12Gr1MoVG, 1Gr5Mo, 1Gr9Mo , P11, T11, T91, T22, P22, P5, P9, WB36
|
|||
|
Surface
|
Pre-galvanised/Hot dipped galvanised/Power coated
|
|||
|
Shape
|
C/H/T/U/Z type
|
|||
|
Thinckness
|
0.3mm-60mm
|
|||
|
Widthness
|
50mm~2000mm or customized
|
|||
|
Length
|
1000mm~8000mm or customized
|
|||
|
Certifications
|
ISO 9001 BV SGS
|
|||
|
Keyword
|
carbon steel channel
|
|||
|
Packing
|
Industry standard packaging or according to client’s requirement
|
|||
|
Payment terms
|
30%T/T in advance, the balance against the B/L copy
|
|||
|
Delivery time
|
Fast delievery in 7 days,up to order quantity
|
|||
Product Display

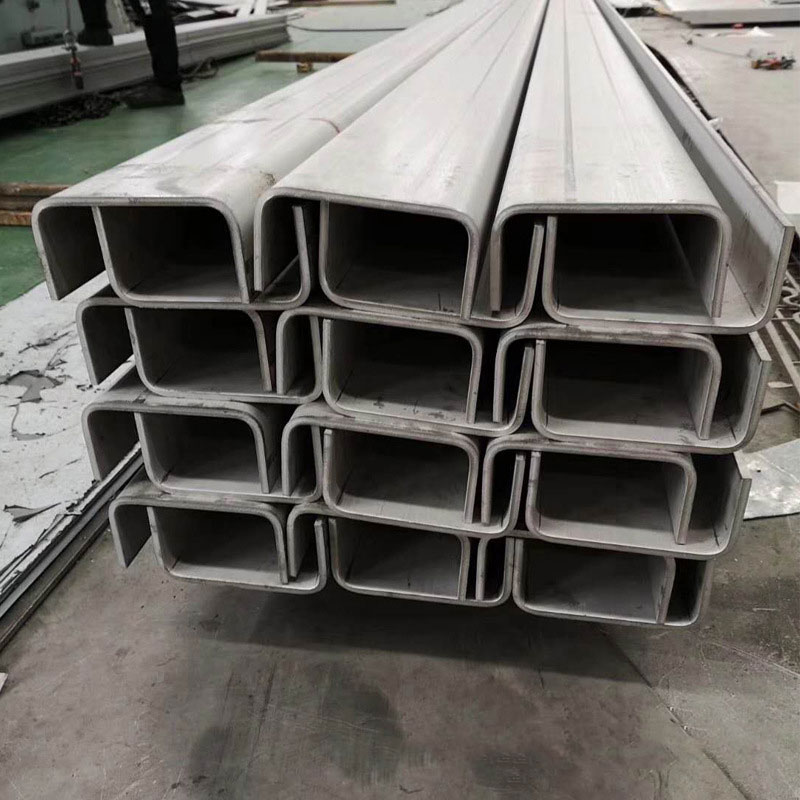

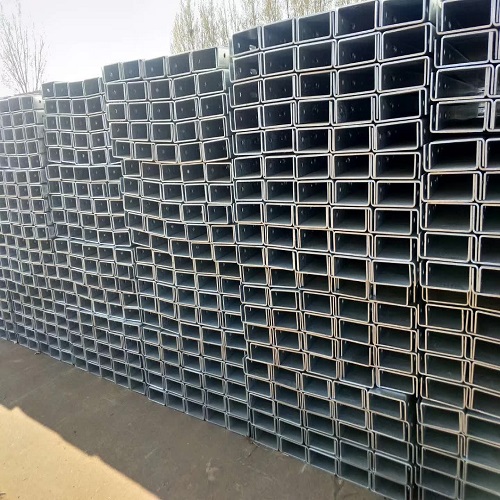

We have a large stock of channel steel, such as U channel steel, C channel beam steel, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of channel steel bars to meet your various needs.
SEND INQUIRY OR EMAIL ME
Ceiling Channel Specification of Specification T and U Type Different Sizes Supply Metal Steel Channel
| Item | Size(mm) | Thickness(mm) | |
| Load Channel | 38 DU | 38×12 | 1.0 1.2 |
| 50 DU | 50×15 | 1.0 1.2 | |
| 60 DU | 60×27 | 1.2 1.5 | |
| Cover Channel | 50DC | 50×19 | 0.5 0.6 |
| 60DC | 60×27 | 0.6 | |
| 50 Wall Angle | 20×20×30 | 0.45 0.5 | |
| Remark: Special size is of Specification T and U Type Different Sizes Supply Metal Steel Channel accepted according to customer’s requirement | |||
Drywall Channel Specification of Specification T and U Type Different Sizes Supply Metal Steel Channel
|
Item |
Size(mm) |
Thickness(mm) |
|
C Steel Channel (Stud) |
50*35/40 |
0.35-1.2 |
|
75*35/40 |
0.35-1.2 |
|
|
100*35/40 |
0.35-1.2 |
|
|
U Steel Channel (Runner) |
50*40/45 |
0.35-1.2 |
|
75*40/45 |
0.35-1.2 |
|
|
100*40/45 |
0.35-1.2 |
|
|
Remark: Special size of Specification T and U Type Different Sizes Supply Metal Steel Channel is accepted according to customer’s requirement |
||
| Inspection Item | Standard | Inspection Value | |
| Appearance | No corrosion, no damage, no black speckle and no pock points | Pass | |
| Both surface galvanization | ≥100g/m² | 115g/m² | |
| Load Channel | Dimension difference A | Dimension A:±0.4mm | -0.3——0.2mm |
| Dimension difference B | Dimension B: ±1.0mm | -0.5——0.5mm | |
| Cover Channel | Dimension difference A | Dimension A:±1.0mm | -0.4——0.1mm |
| Dimension difference B | Dimension B:±0.4mm | -0.3——0.1mm | |
| Side flatness | ≤1.5mm/1000mm | 0.6mm/1000mm | |
| Underside flatness | ≤1.5mm/1000mm | 0.5mm/1000mm | |
| Angle difference | ≤1°15′ | 1° 5′ | |
| Load Channel | Load test | Strengthen flexibility limitation 5.0mm | Strengthen flexibility 4.2mm |
| Remainder distortion limitation2.0mm | Remainder distortion1.4mm | ||
| Cover Channel | Load test | Strengthen flexibility limitation10.0mm | Strengthen flexibility 8.9mm |
| Remainder distortion limitation 2.0mm | Remainder distortion 1.5mm | ||
| Test table above ,load keel is 50*15*1.2mm, cover channel is 50*19*0.5mm | |||
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
