Product Description

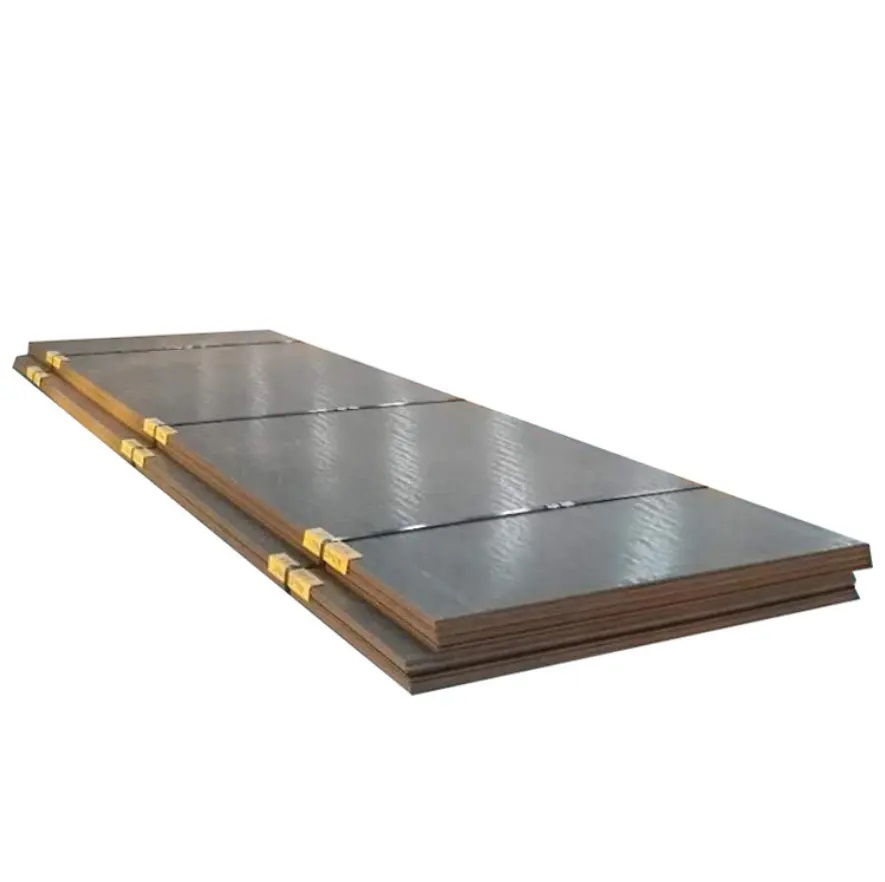

ASTM 36 steel plate is the American standard carbon structural plate, which implements the standard ASTM A36/A36M-03a. This standard is applicable to riveted, bolted and welded structures for bridges and buildings, as well as general-purpose structural steel quality carbon steel sections and steel plates. and bar steel.
chemical composition
C: ≤0.25, Si≤0.40, Mn: ≤0.80-1.20, P≤0.04, S: ≤0.05, Cu≥0.20 (when copper-containing steel is specified).
Mechanical properties
Yield strength: ≥250.
Tensile strength: 400-550.
Elongation: ≥20.
Carbon steel plate is a steel plate with carbon as the main alloying element. Carbon steel plate has high strength and rigidity, and relatively low cost, so it is widely used in manufacturing machinery, automobiles, construction and other fields.
According to the chemical composition and mechanical properties of carbon steel plates, carbon steel plates can be divided into the following categories:
1. Low carbon steel plate: the carbon content is below 0.05%.
2. Medium carbon steel plate: the carbon content is between 0.3% and 0.6%.
3. High carbon steel plate: the carbon content is above 0.6%.
In addition, according to the processing state of the steel plate, the carbon steel plate can be divided into hot-rolled steel plate and cold-rolled steel plate. Hot-rolled steel sheets are generally used in the manufacture of thick plates, while cold-rolled steel sheets are suitable for the manufacture of thin-plate and thin-shell structural components.
In addition, steel plates can also be divided into carbon steel plates, galvanized steel plates, stainless steel plates, wear-resistant steel plates, weather-resistant steel plates, alloy steel plates, etc.
SEND INQUIRY OR EMAIL ME
Standards and Classifications
| Item | Thickness (mm) | width(mm) | Length(M) |
| Cold rolled steel plate | 0.2-2.0mm | 500-2200mm | As client requirement |
| Hot rolled steel plate | 2-100mm | 500-2200mm | As client requirement |
| Main grade | A36, A283, A105, St37, St52, SS400, S235JR, S235J0, S235J2, S275, S275JR, S275J0, S355J0, S355K2, S355J2, S355JR, Q195,Q215, Q235, Q235B, Q345, Q345A, Q345B, Q370, Q420, A516GR60, A516GR70, 15CrMoR, 12Cr1MoVR, P235GH, P265GH, P295GH, P355GH, AH32, AH36, DH32, DH36, EH32, EH36, SM400A, SM400B, SM490A, SM490B, NM360, NM400, NM450, NM500, SPCC, SGCC, DC01, DC03, DC04 | ||
| Standard | ASTM A20/A20M, A36/A36M, JIS G3115, DIN 17100, EN 10028, GB/T 24186 | ||
| Surface | Clean, blasting and painting ,Decorative pattern into tear, diamond, round bean shaped, mixed oval shape or as client requirement. | ||
| Width | 500-2200mm | ||
| Tolerance | Thickness: +/-0.02mm, Width:+/-2mm | ||
| Other Common Size | 1219*2438; 1220*2440; 1500*3000; 500*6000; 2438*6096; 2438*9143;
Can be customized, cut, or processed according to customers’ requirements |
||
| Package | tied up with steel strips and wrapped with water proof paper | ||
| Application | Building Construction, Bridge, Architecture, Vehicles Components, Hipping, High pressure container, Boiler, Shipping building, Food and Mechanical Industries, Large Structure steel,etc. | ||
Product Display

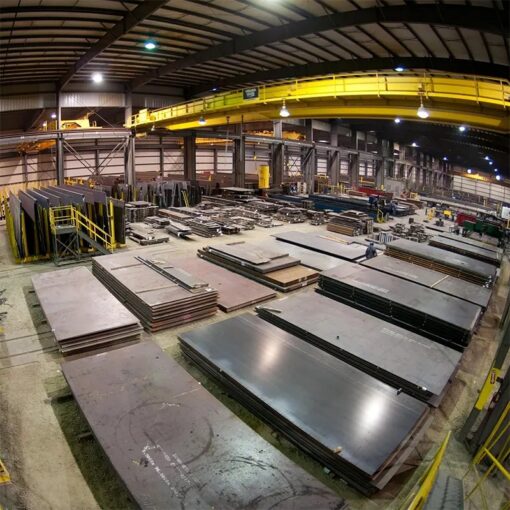

We have a large stock of steel plates, such as carbon steel plates, alloy steel plate, hot rolled steel plate, cold rolled steel sheet, abrasion resistant steel plate, etc. Welcome to visit our factory at any time.
SEND INQUIRY OR EMAIL ME
We can supply various types of carbon steel plates steel sheet to meet your various needs.
SEND INQUIRY OR EMAIL ME
| Item | Material | Thickness (mm) | Width (mm) | Length (mm) |
| Low carbon steel plate | Q195, Q235, SS330, SS400, A36M, S185, S235, S275, S275JR ,S355, S355JR | 6-25 | 1500 – 2500 | 4000 – 13000 |
| Low alloy structural steel plate | SM400A, SM400B, SM400C, SM490A, SM490B, SM490C, SM490YA, SM490YB, SM520B, SM520C | 6-30 | 1500 – 2500 | 4000 – 12000 |
| Boiler and pressure vessel steel plate | A516 Gr.60, A516 Gr.70, P235GH, P265GH, P295GH, P355GH, Q245R, Q345R, 15CrMoR, 12Cr1MoVR | 6-40 | 1500-2200 | 4000 – 12000 |
| Bridge steel plate | Q235, Q345, Q370, Q420 | 1.5-40 | 1500-2200 | 4000 – 12000 |
| Shipbuilding steel plate | GL, DNV, ABS, BV, CCS, AH32, AH36, DH36, DH36 | 2-60 | 1500-2200 | 4000 – 12000 |
| Wear resistant steel plate | NM360, NM400, NM450, NM500, NM550 | 6-70 | 1500-2200 | 4000 – 8000 |
| Corten steel plate | SPA-H, 09CuPCrNiA, Corten A | 1.5-20 | 1100-2200 | 3000 – 10000 |
Exhibition Of Cooperation
SEND INQUIRY OR EMAIL ME
Packing & Delivery
Shipping By Sea
1. Standard packaging
2. Packaging according to customer requirements
SEND INQUIRY OR EMAIL ME
FAQ
Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory.
Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Liaocheng, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed.
